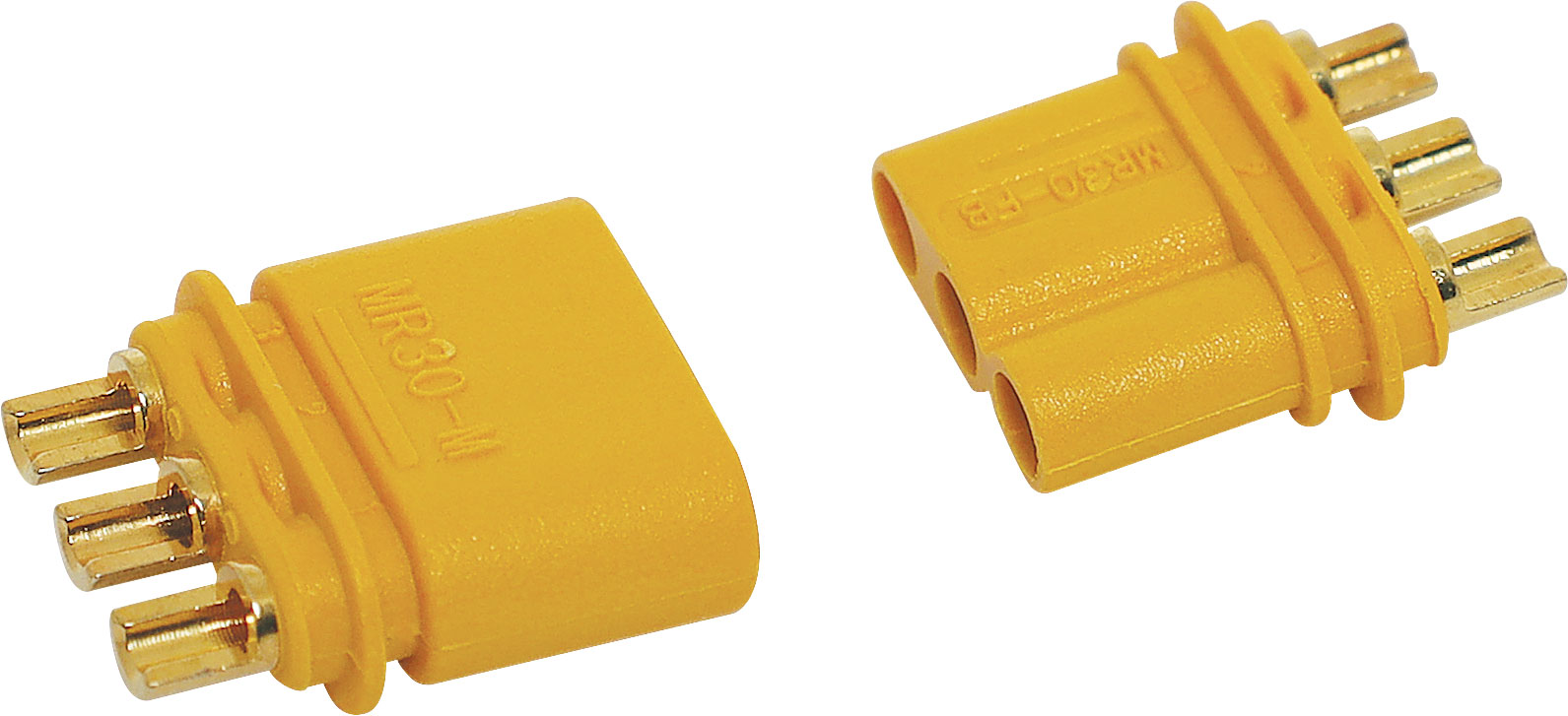

30A 500V MR30M Style High Current DC Connector

SKU: P7826
These MR30-M connectors are ideal for use as battery connectors in high current draw applications such as RC LiPo batteries.
$7.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $7.23
4+ $6.50
10+ $5.77
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

These MR30-M connectors are ideal for use as battery connectors in high current draw applications such as RC LiPo batteries. Supplied as plug & socket pair. 30A rated @ 500V DC. Includes both plug and socket.

Features

  • Suitable for connecting ESCs and motors
  • With protective sleeve
  • Assistive weld foot, more stable

Specifications

Connector Type: DC plug and socket

  • Amps: 30A Continuous
  • Size (female): 14x12x5mm (with cover)
  • Weight (female): 1.0g (with cover)
  • Size (male): 15x12x5mm (with cover)
  • Weight (male): 1.4g (with cover)
  • Body Material and Surface Plating: Brass and gold plated
  • Insulation Material: PA66
  • Original Internal Resistance: 0.8MΩ
  • 500 Times Internal Resistance: 0.85MΩ
  • Max. Continuous Current: 30A (within 30 minutes)
  • Max. Instantaneous Current: 40A (within 1 minutes)
  • Recommended Cable Spec: 18AWG 2.8mm diameter
  • Recommended Soldering Spec: 400° C/3S
  • Weight: 1.2g/pcs
  • Insulation Degree: UL94V-0
  • Machine Life: 3000 Times

Warranty & Returns

12 Months

We Offer 12 Months for this product
