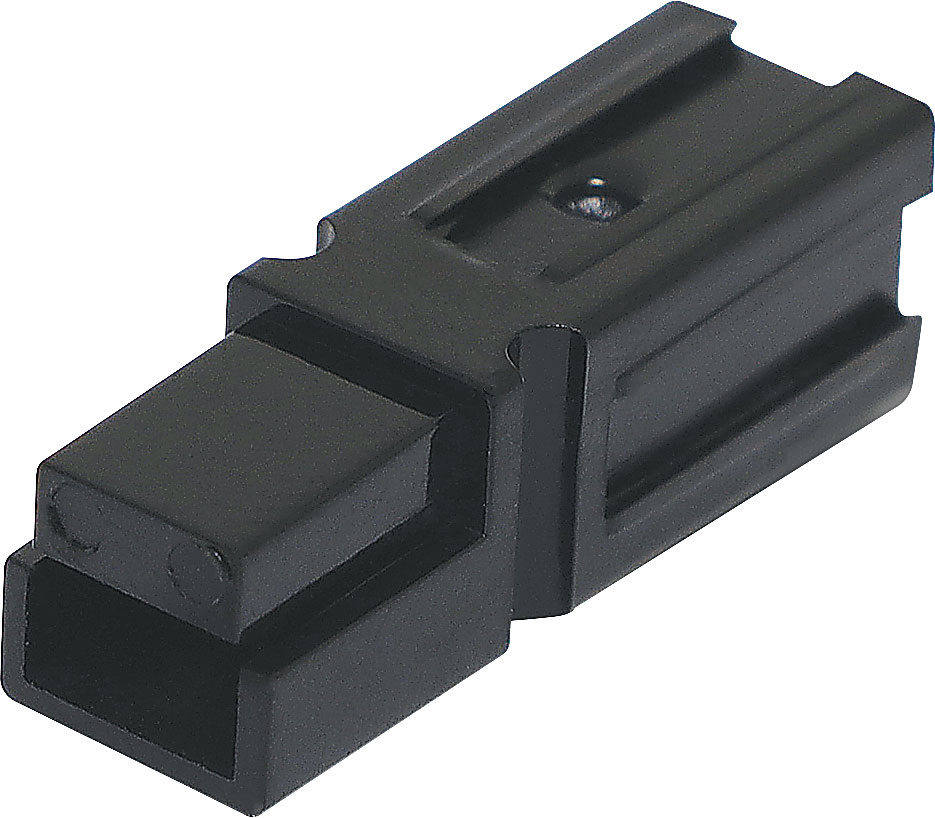

75A 600V Black PowerPole Style High Current DC Anderson Plug

Be the first to review this product
Genuine Anderson Power DC 600V connector.
SKU: P7818B
$5.00
Per ea
Quantity Price
ea $5.00
10+ $4.50
25+ $4.09

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Anderson PowerPole style DC 600V connector (not genuine). As used in automotive and industrial applications. Can be dovetailed together for multi-pole connectors. 75A rated. Sold individually.

Supplied with connector housing and crimp lug.

Specifications

Cable Entry: 3.2mm.

  • Max Insulation Diameter: 11mm
  • Rated current: 75A
  • Rated voltage: 600V
  • Insulation Resistance: 5000MΩ
  • Average contact Resistance(micro-ohms):<180 1-5.
  • Voltage Proof: 2200V(DC)
  • Life Without load(Contact/Disconnect Cycles):To 10000
  • Life With Load (Hot Plug 250 Cycles&120V): 50A
  • Flammability:UL94 V-0
  • Contact Barrel Wire Size(AWG):6~12AWG
  • Connector holding force(LBF):250N Min
  • Environment Temperatures:-20? to 125?
