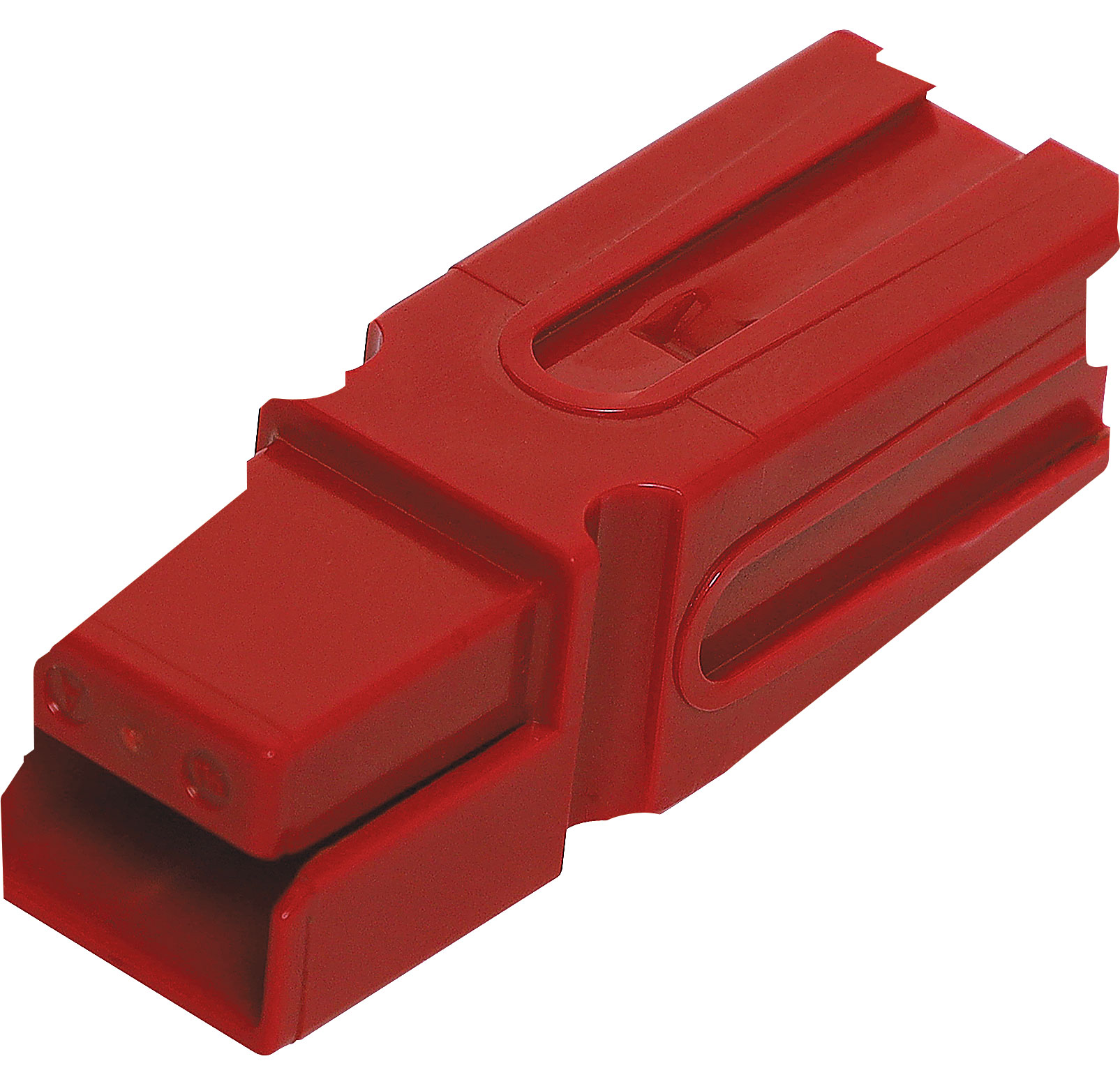

75A 600V Red PowerPole Style High Current DC Anderson Plug

Be the first to review this product
Anderson Power Pole style DC 600V connector (not genuine). As used in automotive and industrial applications. Can be dovetailed together for multi-pole connectors. 75A rated. Sold individually.
SKU: P7817B
$5.00
Per ea
Quantity Price
ea $5.00
10+ $4.50
25+ $4.09

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Anderson PowerPole style DC 600V connector (not genuine). As used in automotive and industrial applications. Can be dovetailed together for multi-pole connectors. 75A rated. Sold individually. Sold individually.

Supplied with connector housing and crimp lug.

Specifications

Cable Entry: 3.2mm.

  • Max Insulation Diameter: 11mm
  • Rated current: 75A
  • Rated voltage: 600V
  • Insulation Resistance: 5000MΩ
  • Average contact Resistance(micro-ohms):<180 1-5.
  • Voltage Proof: 2200V(DC)
  • Life Without load(Contact/Disconnect Cycles):To 10000
  • Life With Load (Hot Plug 250 Cycles&120V): 50A
  • Flammability:UL94 V-0
  • Contact Barrel Wire Size(AWG):6~12AWG
  • Connector holding force(LBF):250N Min
  • Environment Temperatures:-20? to 125?
