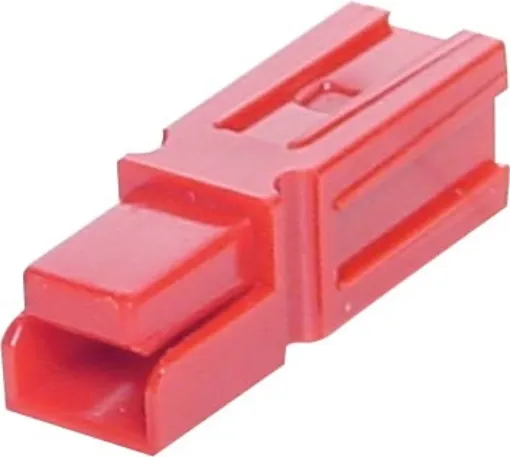

30A 600V Red Anderson PowerPole Style DC Plug

Manufacturer: Powerhouse
Be the first to review this product
High current DC connectors as used in automotive and industrial applications. Anderson PowerPole Style.
SKU: P7805B
$2.05
Per ea
QuantityPrice
ea$2.05
10+$1.86
25+$1.64

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Anderson PowerPole style DC 600V connector (not genuine). As used in automotive and industrial applications. Can be dovetailed together for multi-pole connectors. 30A rated. Sold individually.

Supplied with connector housing and crimp lug.

Colour: Red
Cable Entry: 2.75mm
Max Insulation Diameter: 4.45mm
Dimensions: 25.5L x 8.44H x 8.44W

Specifications

Amperage Rating: 30A

  • Contacts Supplied: No
  • Oper. Volt (AC): 600V
  • Oper. Volt (DC): 600V
  • Type: Contact
  • RoHS: Yes
  • Wire Size (AWG): 12-16
  • Wire Size (mm²): 1.3-3.3

12 Months

We Offer 12 Months for this product
