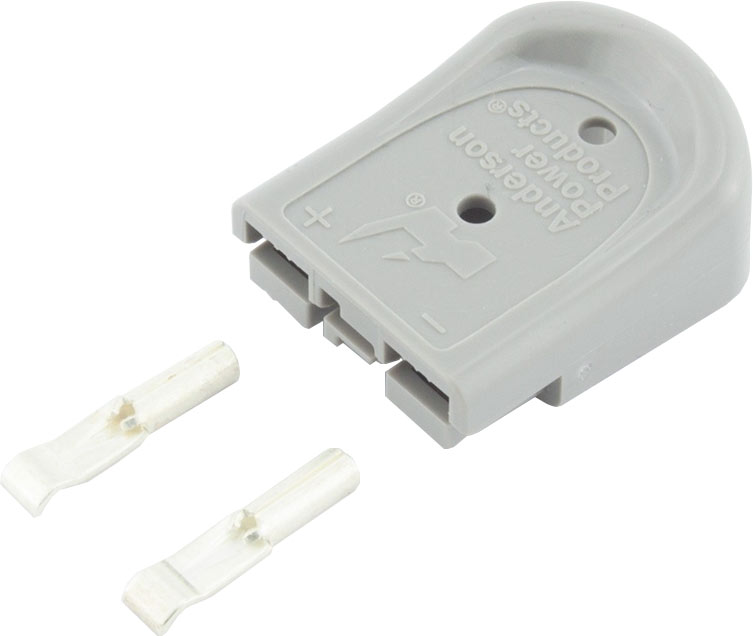

Anderson SBS Mini Plug Kit 2 Way Grey 15A 16AWG Contacts

Manufacturer: APP
SKU: P7790
Amperage Rating: 15 Colour: Grey Contacts: Genderless Contact Plating: Silver Contacts Supplied: No Housing Material: Polycarbonate Positions: 2 Type: Complete Kits RoHS: Yes Wire Size (AWG): 16 Wire Size (mm²): 1.3
$7.27

All Prices Shown are (ex GST)

Bulk Pricing
ea $7.27
4+ $6.82
10+ $6.14
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This SBSM-GRY-15 is a 15 Amp plug kit sold as a Grey housing and 16 AWG contacts. The SBS Mini series is rated to 600 Volts and will accept from 0 to 1.50 mm2 wire depending on contact options. Common uses for the SBS Mini series include drones, amateur radio, RC, solar and 4x4 applications.

Specifications

Amperage Rating: 10.1 - 20.0A

  • Colour: Grey
  • Contact Gender: Genderless
  • Contact Plating: Silver
  • Contacts Supplied: Yes
  • Housing Material: Polycarbonate
  • Positions: 2
  • RoHS: Yes
  • Wire Size (AWG): 16
  • Wire Size (mm²): 0 - 1.50mm2

Warranty & Returns

12 Months

We Offer 12 Months for this product
