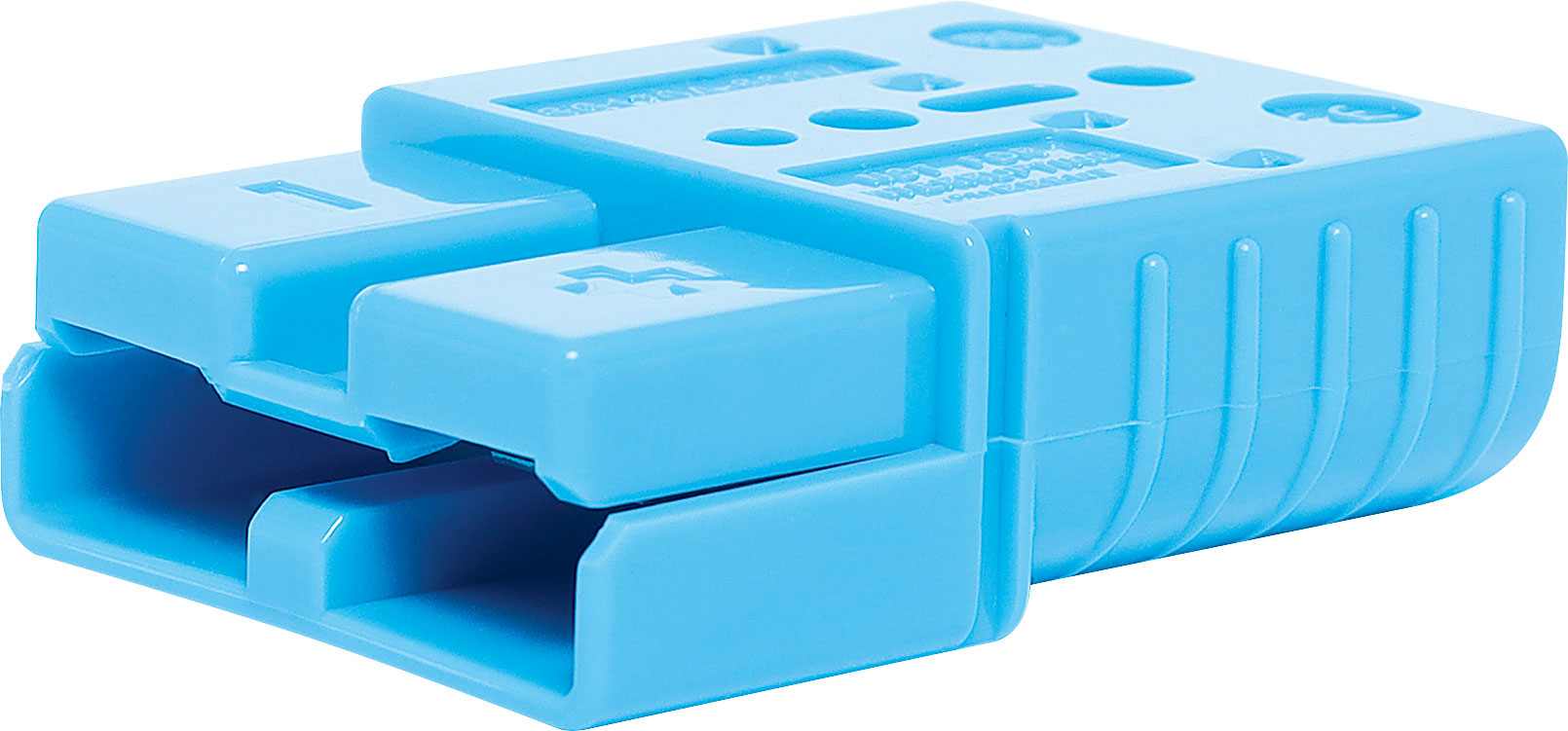

120A 600V Blue High Current DC Anderson Style Power Plug

Be the first to review this product
Anderson style blue 120A DC power connector.
SKU: P7743
$16.32
Per ea
QuantityPrice
ea$16.32
4+$14.68
10+$13.05

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Anderson style blue 120A DC power connector. These heavy duty DC plugs feature a reversible gender design (the same plug can be used as both male and female). Not suitable for connecting or disconnecting circuits under load.

Supplied with connector housing and two crimp lugs.

Specifications

Contact barrel size (AWG): 2

  • Wire size: 38mm/sq
  • Current rating: 120A
  • Voltage rating: 600V
  • Max. wire insulation diameter: 14.6mm
  • Contact retention force: 100lbs
  • Operating temperature: -20º - 125ºC
  • Flammability rating of housing material: UL94V-0

12 Months

We Offer 12 Months for this product
