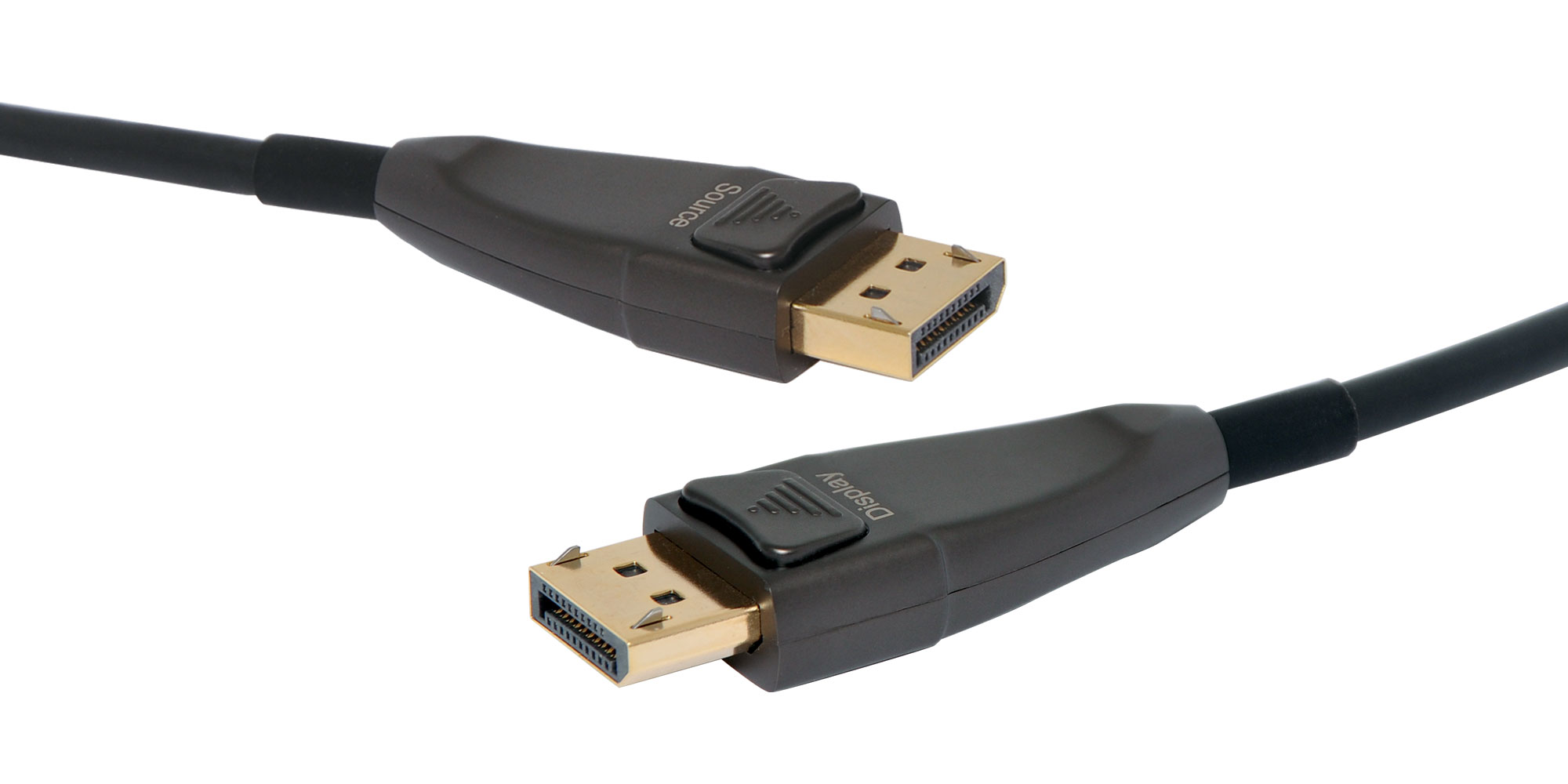

30m Optical DisplayPort Male to Male Lead

Manufacturer: Dynalink
Be the first to review this product
This range of Optical DisplayPort male to male leads have been constructed and designed using hybrid fibre and copper cable to ensure high-definition performance.
SKU: P7463A
$286.36
Per ea
Quantity Price
ea $286.36
2+ $268.18
4+ $253.64

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This range of Optical DisplayPort male to male leads have been constructed and designed using hybrid fibre and copper cable to ensure high-definition performance. Used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data. DisplayPort was designed to replace VGA, FPD-Link, and Digital Visual Interface (DVI). This range supports 8K resolution at 60Hz and due to its slimline plug it will suit a 25mm conduit.

Please Note: This cable is directional (Source - Display).

Features

  • Supports 8K @ 60Hz
  • 32Gbps Bandwidth total
  • DisplayPort 1.4 Compliant
  • HDCP 2.2 Compliant
  • Hybrid fibre and copper cable
  • Slimline plug suits 25mm conduit

Specifications

Performance

  • Standards Compliance: DisplayPort 1.4/HBR3, HDCP 1.4/2.2
  • Maximum Pixel Clock Frequency: 810MHz
  • Maximum Video Bit Rate: Supports up to 8.1Gbps per lane, 32.4Gbps total
  • Maximum Colour Depth: 48bits
  • Maximum Supported Resolutions: 8K @ 60Hz

Connections

  • DisplayPort Input/Output: 20 Pin DisplayPort
  • Power: No external power supply is required

AUX Channel Support

  • AUX Channel Communications: Supports bi-directional communications for EDID, HDCP, Link Training etc
  • HDCP Support: HDCP 1.4 and HDCP 2.2

Optical

  • Optical Technology: 4 x discreet optical channels, 10GHz, 850nm
  • Optical Transmitter: 4 x 850nm multi-mode VCSELs
  • Optical Receiver: 4 x GaAs PIN photo diodes

Cable

  • Fiber Cable Jacket: Hybrid cable 4 x fiber and 8 x copper wire
  • Cable Jacket: PVC, Black
  • Cable Length: 30m

Mechanical - Cable

  • Maximum Tensile Load: 300N
  • Minimum Bend Radius: 48mm
  • Cable Diameter: 4.8mm (outside)

Environmental

  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -20°C to +85°C
  • Operating/Storage Humidity: 5% to 80% (non condensing)

Power Requirements

  • Power Source: Powered from DisplayPort source device
  • Power Consumption: <0.5W each end

12 Months

We Offer 12 Months for this product
