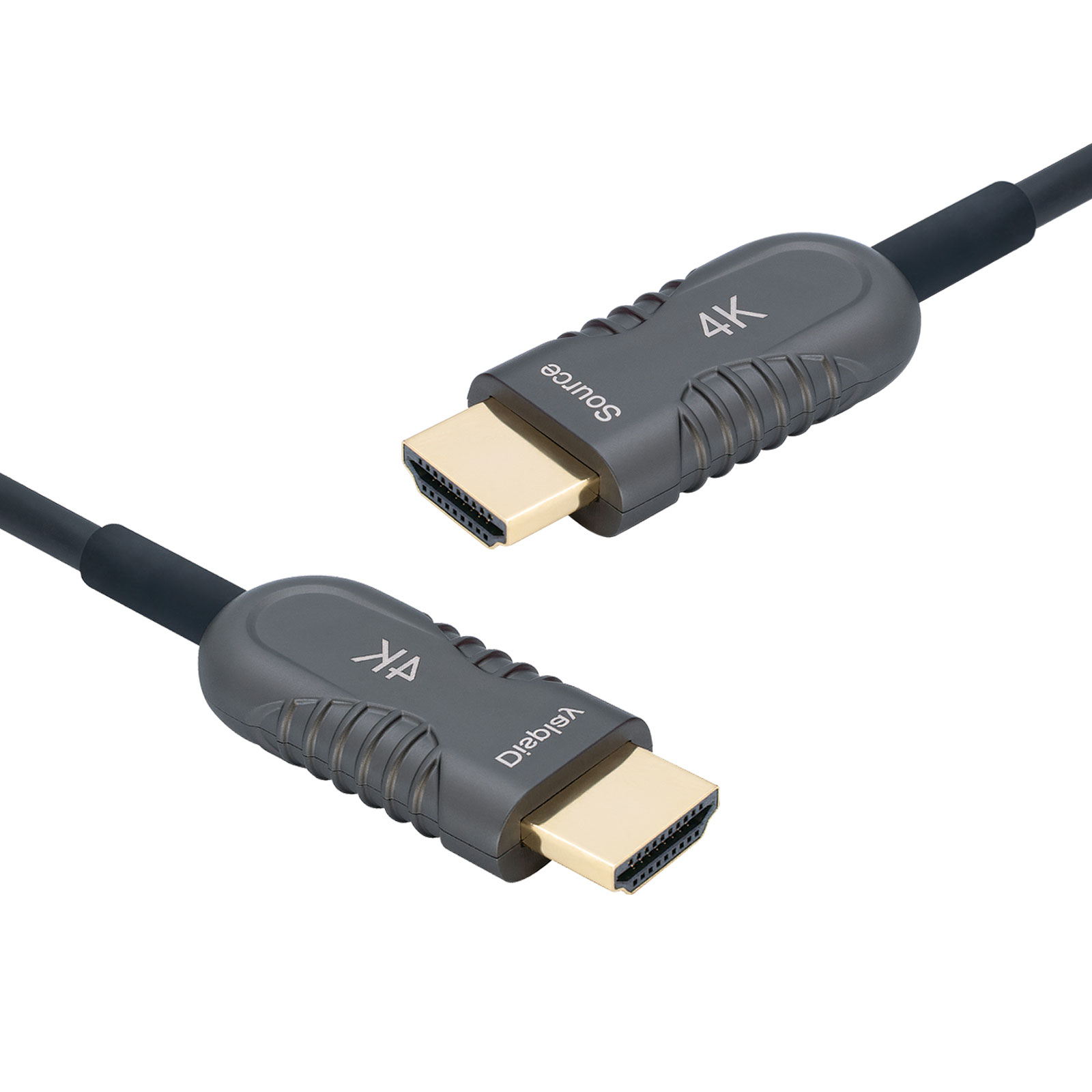

100m Active Optical (AOC) High Speed HDMI Cable with Ethernet

Manufacturer: Dynalink
SKU: P7439A
Cutting edge optical HDMI technology supporting 4K @ 60Hz resolutions at longer lengths than copper cable can achieve.
$318.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $318.18
2+ $295.45
4+ $263.64
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This is a HDMI® active optical cable designed for long-distance AV distribution that demands highest signal integrality. The cable is thinner, lighter and more flexible than copper cable supporting 4K@60Hz (4:4:4) up to 100m. This AOC cable is no need external power supply.

Care should be taken when installing this optical cable to ensure that it is not run in tight bends (less than 2cm diameter) and that the cable does not knot. The cable should not be bent 180 degrees. Doing so will break the internal optical fibre core and render the cable inoperable. We do not provide warranty on cables which have been installed incorrectly. We suggest checking the cable connectivity between equipment prior to installation.

Please Note: This cable is directional. The plug labelled "DISPLAY" must be plugged into the TV Monitor input and the other plug labelled "SOURCE" must be plugged into the media source output.

Features

  • 4K/UHD - Video resolution up to 18G 4K@60 4:4:4.
  • HDMI® and HDCP 2.2 Compliant.
  • HDR 10 (High Dynamic Range) - More life-like images through a greater range of luminance levels.
  • Varied Selection of Lengths - Available in models from 10 to 100m.
  • Zero Compression - Zero compression and zero latency.
  • Multi-channel Audio Extension - Up to 32 channels of uncompressed digital stereo signals for studio-grade surround sound.
  • EDID Pass Thru- Pass EDID signals from the display to source.
  • EMI & RFI Immunity.
  • No External Power Supply Needed.
  • Easy to Use - Simple to install, plug and play.

Specifications

Inputs: 1 x HDMI® (Type A 19-pin male)

  • Outputs: 1 x HDMI® (Type A 19-pin male)
  • Compliance Standards: HDMI® (4K@60Hz Chroma sub-sampling 4:4:4 24bpp), HDCP 2.2
  • Maximum Resolution Support: 4K@60Hz 4:4:4 8-bit
  • Maximum Pixel Clock: 594MHz
  • Maximum Data Rate: 18Gbps (6Gbps per graphic channel)
  • Audio Format: 2ch LPCM | Multichannel: LPCM, up to DTS-X, Dolby Atmos
  • Latency: Zero
  • Cable Structure: Hybrid optical fiber cable with copper wire
  • Fiber Optic: Multi-mode fiber
  • Operating Temperature: 0°C to 45°C
  • Storage Temperature: -20°C to 70°C
  • Humidity: 10% to 90%, non-condensing
  • Cable Diameter: 4.8mm
  • Product Supply: No need external power
  • Power Consumption (MAX): 0.45W
  • Net Weight:1000g for 30m

Warranty & Returns

2 Years

We Offer 2 Years for this product

Specifications

Products specifications
Warranty Group
Warranty 2 Years
