VGA Wallplate - Screw Connections

Manufacturer: Dynalink
Be the first to review this product

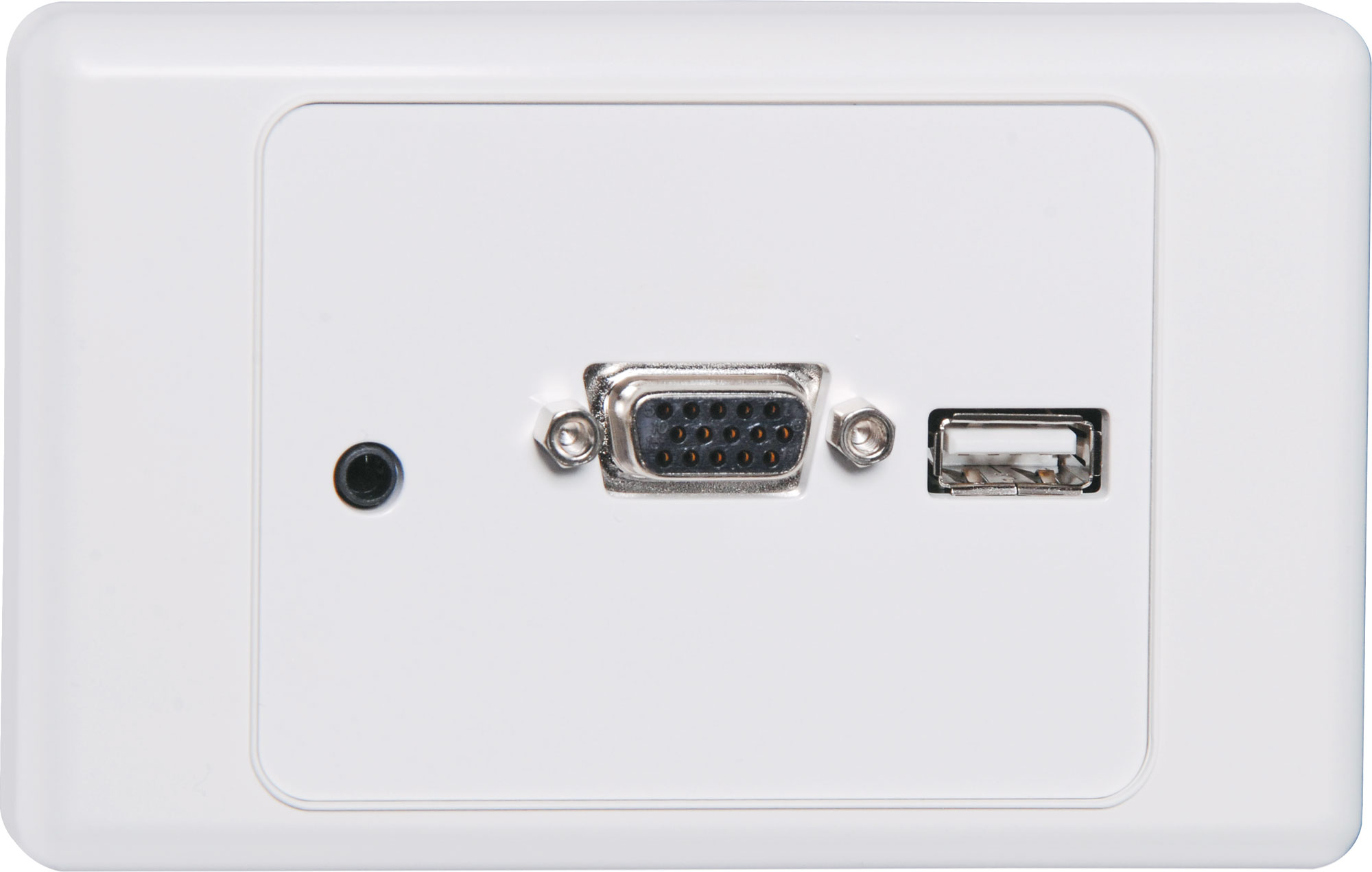

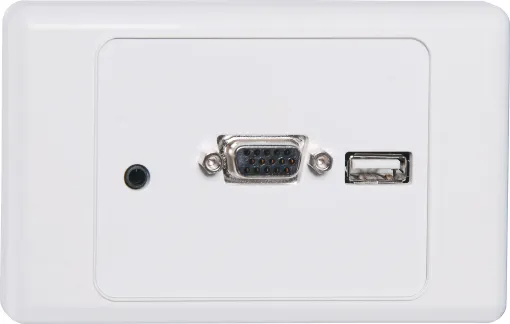

Wallplate fitted with VGA, 3.5mm audio & USB connector. Rear connections are via screw terminals. Supplied with two facia covers to suit your decor.
SKU: P5940
$30.91
Per ea
QuantityPrice
ea$30.91
4+$29.09
10+$27.27

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Wall plate fitted with VGA, 3.5mm audio & USB connector. Rear connections for VGA and 3.5mm audio are via screw terminals. Altronics dual cover type wallplate.

Pinouts:
Lower row: pins 1-9
Upper row: pins 10-15, pin 16 Common, pin 17-18 L-R audio.

All wall plates assembled by Altronics are supplied with two facia clip on covers. These are designed to match your current decor. Simply clip on the desired cover after installation.

12 Months

We Offer 12 Months for this product
