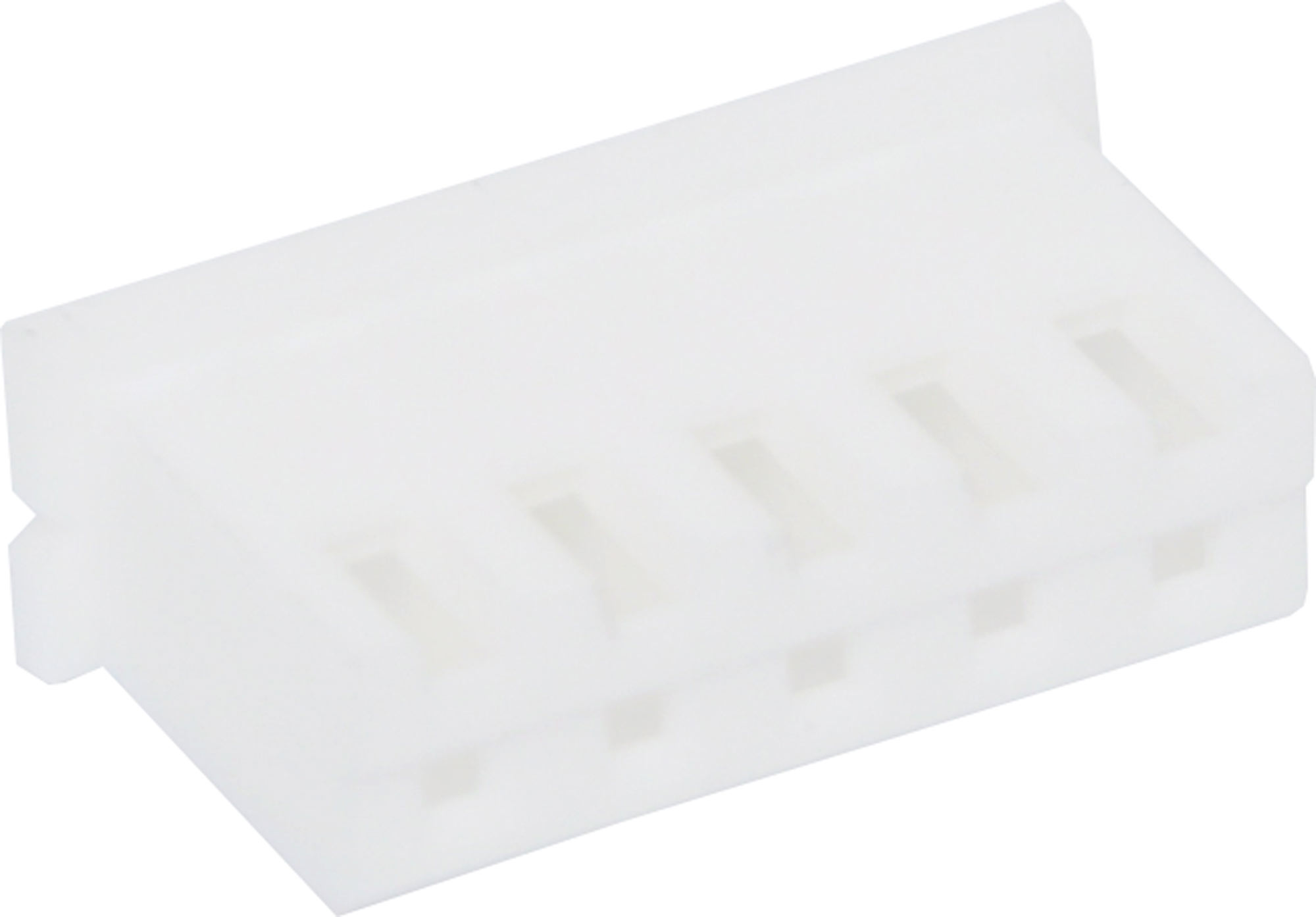

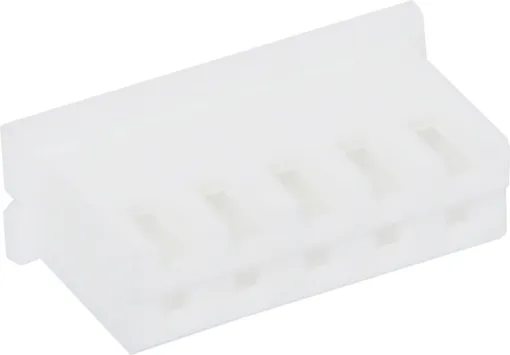

5 Way 2.5mm Crimp Housing

Manufacturer: Oupiin
Be the first to review this product
Header Plugs. 2.5mm Spacing Rated at 2A. Crimp pins sold separately
SKU: P5755
$1.00
Per EACH
QuantityPrice
EACH$1.00
10+$0.91
50+$0.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Header Plugs. 2.5mm Spacing Rated at 2A.

Crimp pins sold separately - see accessories listed below.

Specifications

Material

  • Housing: Nylon 66 flame retardent UL94V-0
  • Recommended wire: 22AWG -28AWG

Electrical

  • Current rating: 2A
  • Insulator resistance: 1000MΩ min. @ 250V AC
  • Operating temperature: -25ºC - +85ºC

12 Months

We Offer 12 Months for this product
