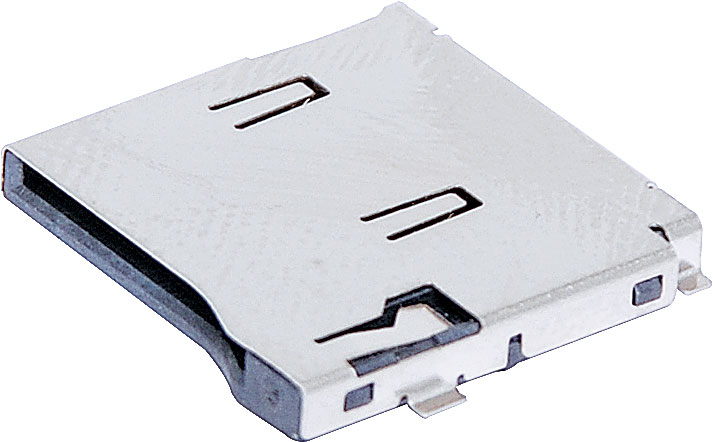

Surface Mount Micro SD Slot Type Memory Card Socket

Manufacturer: Oupiin
SKU: P5717
Push-push secure locking type. When inserted, card locks in. When card is pushed it springs outward.
$2.50

All Prices Shown are (ex GST)
Bulk Pricing
ea $2.50
10+ $2.32
40+ $2.05
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Push-push secure locking type. When inserted, card locks in. When card is pushed it springs outward.

Note: This item has a different footprint to the previous model P 5718.

Specifications

Housing: High Temperature Plastic UL94V-0

  • Contacts: Copper Alloy
  • Shell: metal
  • Current rating: 0.5A
  • Voltage rating: 10V AC
  • Dielectric withstanding voltage: 500V AC for 1 minute
  • Insulator resistance: 100MΩ min. at 100mA DC
  • Contact resistance: 100mΩ max. at 100mA DC
  • Operating temp.: -20ºC ~ +80ºC

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
