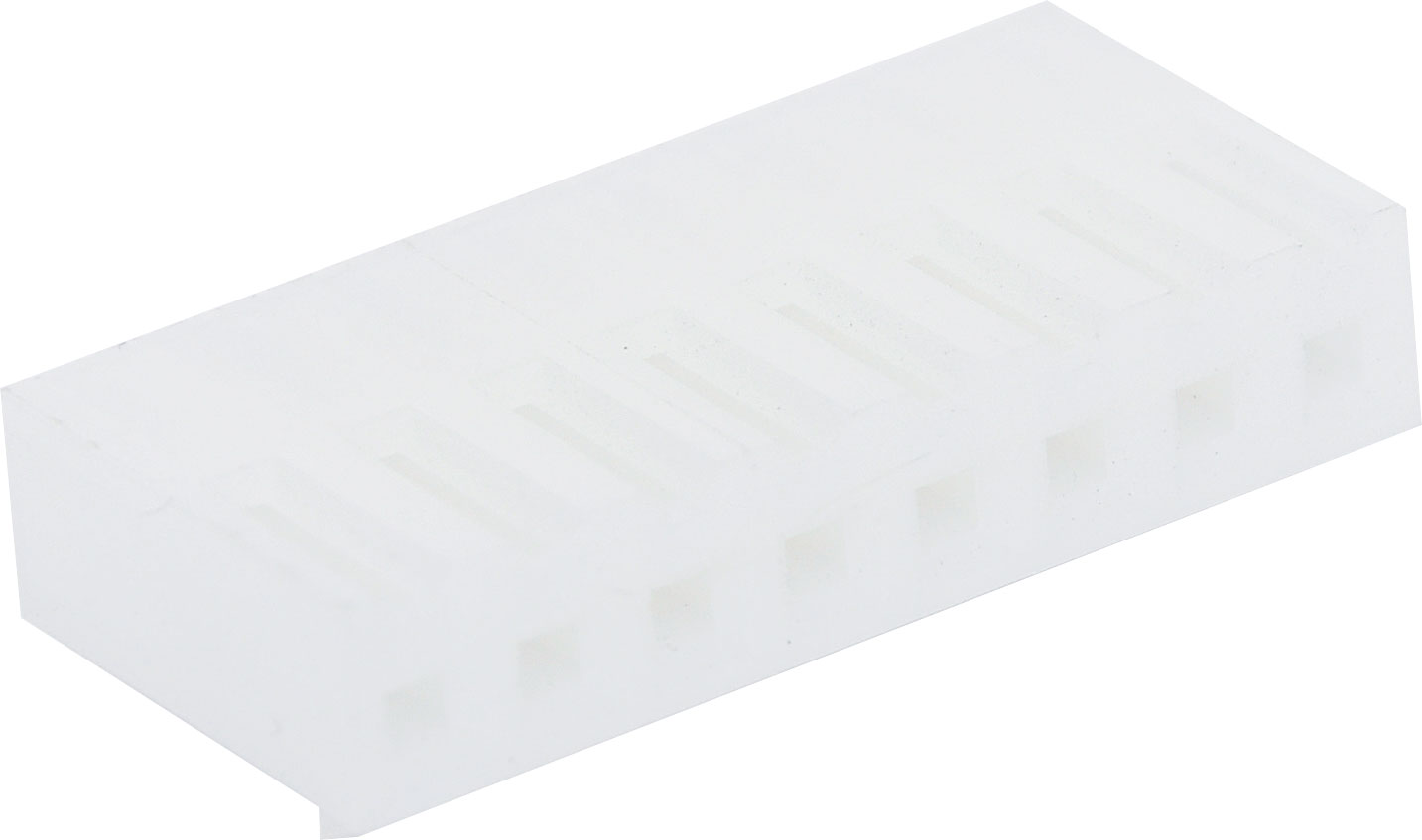

8 Way 3.96mm Crimp Housing

Manufacturer: Oupiin
Be the first to review this product
8 Way. Header Plug. 3.96mm Spacing. Rated at 7A.
SKU: P5648
$1.00
Per ea
QuantityPrice
ea$1.00
10+$0.82
50+$0.77

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

8 Way.
Header Plug.
3.96mm Spacing.
Rated at 7A.


Crimp pins sold separately.

Specifications

Material

  • Housing: Nylon 66 flame retardant UL94V-2
  • Contacts: Tin plated brass
  • Recommended wire: 18AWG -24AWG

Electrical

  • Current rating: 7A
  • Insulator resistance: 5000MΩ min. @ 5000V AC
  • Contact resistance: 20mΩ max @ 100mA DC.
  • Operating temperature: -25ºC - +85ºC
