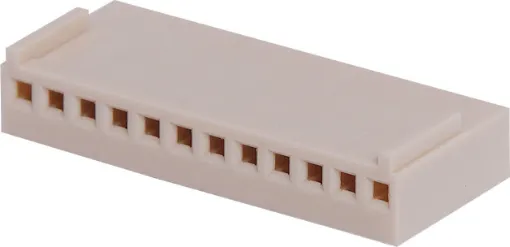

12 Way 2.54mm Crimp Housing

Manufacturer: Oupiin
Be the first to review this product
12 Way. Header Plugs. 2.54mm Spacing. Rated at 2A.
SKU: P5482
$1.45

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

12 Way.
Header Plugs.
2.54mm Spacing.
Rated at 2A.

Crimp pins sold separately


Specifications

Material

  • Housing: Nylon 66 flame retardant UL94V-2
  • Contacts: Tin plated brass
  • Recommended wire: 22AWG -28AWG

Electrical

  • Current rating: 2A
  • Insulator resistance: 1000MΩ min. @ 250V AC
  • Contact resistance: 10mΩ max.
  • Operating temperature: -25ºC - +85ºC
