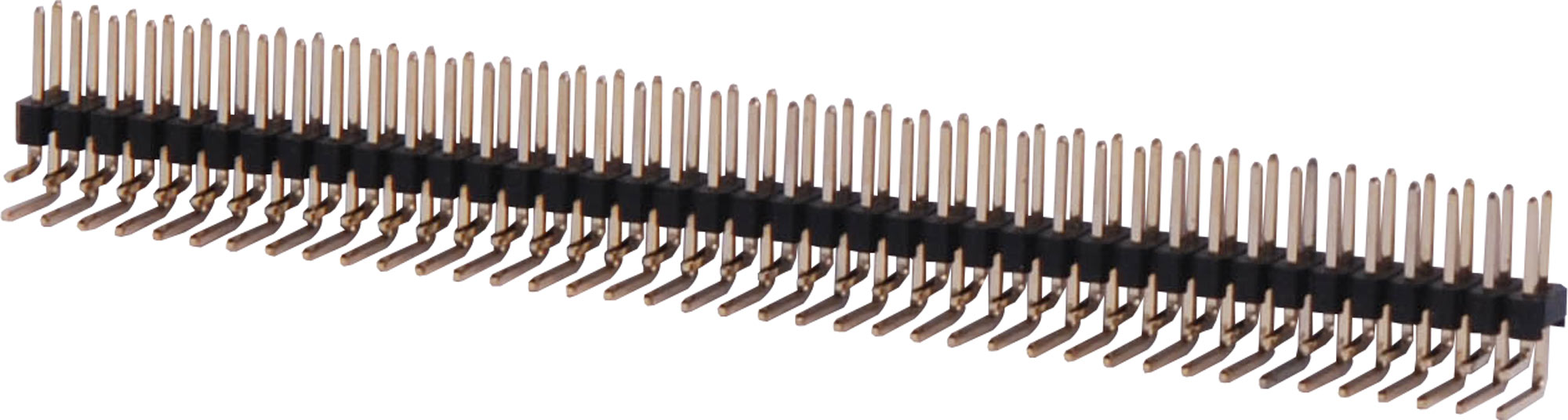

40 Way x 2 90 degree Header Pin Strip

Manufacturer: Oupiin
Be the first to review this product
Single and dual row models available in straight or 90 deg. pin types. Both have 2.54mm pin spacing. Gold Plated Contacts
SKU: P5420
$2.18
Per ea
QuantityPrice
ea$2.18
10+$2.00
40+$1.77

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Single and dual row models available in straight or 90° pin types. Both have 2.54mm pin spacing. Gold Plated Contacts

Specifications:

Contact Resistance: 30M Ohm max @ 100mA DC

  • Insulator Resistance: 1000M Ohm @ 250V DC
  • Current Rating: 1 A
  • Dielectric Voltage: 500V AC for 1 min.
  • Operating Temperature: -50º to +105º C

12 Months

We Offer 12 Months for this product
