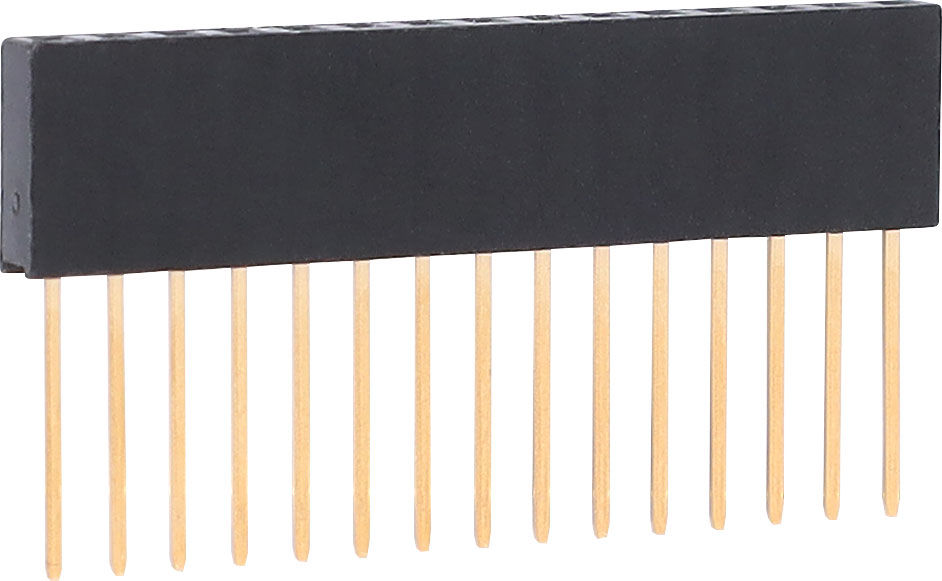

1 x 15 Pin 11mm Stackable Header Socket

Manufacturer: Oupiin
Be the first to review this product
These stackable headers are made to work with the SparkFun Qwiic Shield for Arduino Nano or any comparable shield to connect the shield with a Arduino Nano footprint.
SKU: P5377
$2.27
Per ea
QuantityPrice
ea$2.27
10+$2.05
40+$1.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

These stackable headers are made to work with the SparkFun Qwiic Shield for Arduino Nano or any comparable shield to connect the shield with a Arduino Nano footprint. The pins are spaced by 0.1".

They allow you to stack a Qwiic Nano shield on top of your Arduino Nano or plug them into a solder-less breadboard.

Note: Soldering is required for functionality and physical attachment to a shield or board.

Specifications

Current Rating: 3A

  • Withstand Voltage: 1000V AC
  • Contact Resistance: 20 megaohms (min)
  • Insulation Resistance: 100 megaohms (min)
  • Operating Temperature: -40°C ~ +105°C
  • Housing: PBT (UL94V-0), Black
  • Contact: Brass, gold flash over nickel
