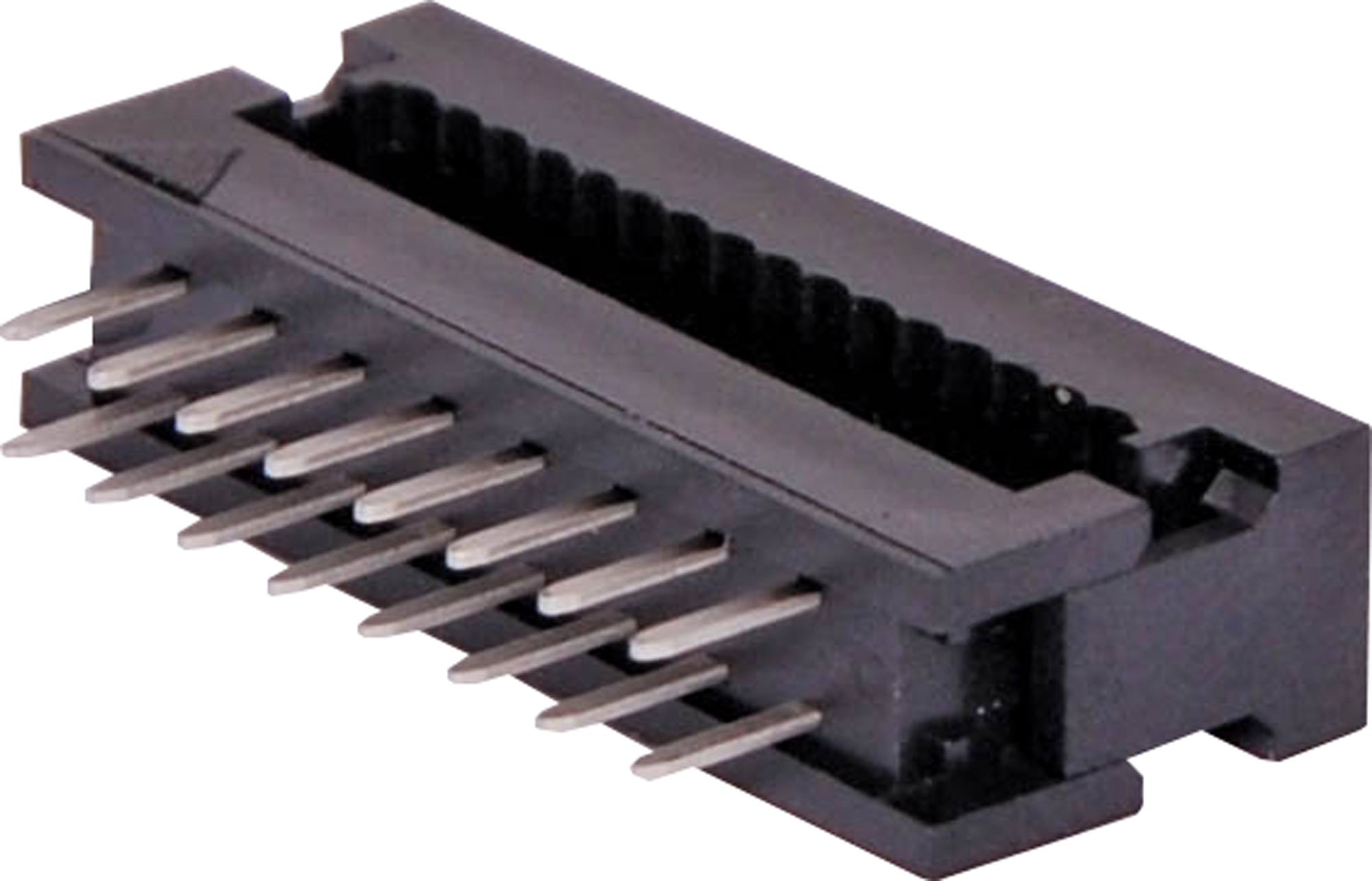

14 Pin 2.54mm Pitch IDC Transition Plug

Manufacturer: Oupiin
SKU: P5162A
Used for non-removable connection to a PCB. Connector is crimped onto IDC ribbon cable and then is soldered to the PCB. Twin row, 2.54mm pitch
$1.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $1.55
10+ $1.41
50+ $1.27
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Used for non-removable connection to a PCB. Connector is crimped onto IDC ribbon cable and then is soldered to the PCB.
Twin row, 2.54mm pitch

Specifications

Materials

  • Housing: Thermoplastic polyester glass filled UL94V-0
  • Contacts: Copper alloy
  • Cable: 1.27mm2 pitch flat cable
  • Electrical Characteristics
  • Current Rating: 1A
  • Dielectric Withstanding Voltage: 500V AC
  • Insulator Resistance: 1000MΩ minimum
  • Contact Resistance: 30mΩ maximum
  • Operating Temperature: -40ºC – +105ºC
  • ROHS Compliant: Yes

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
