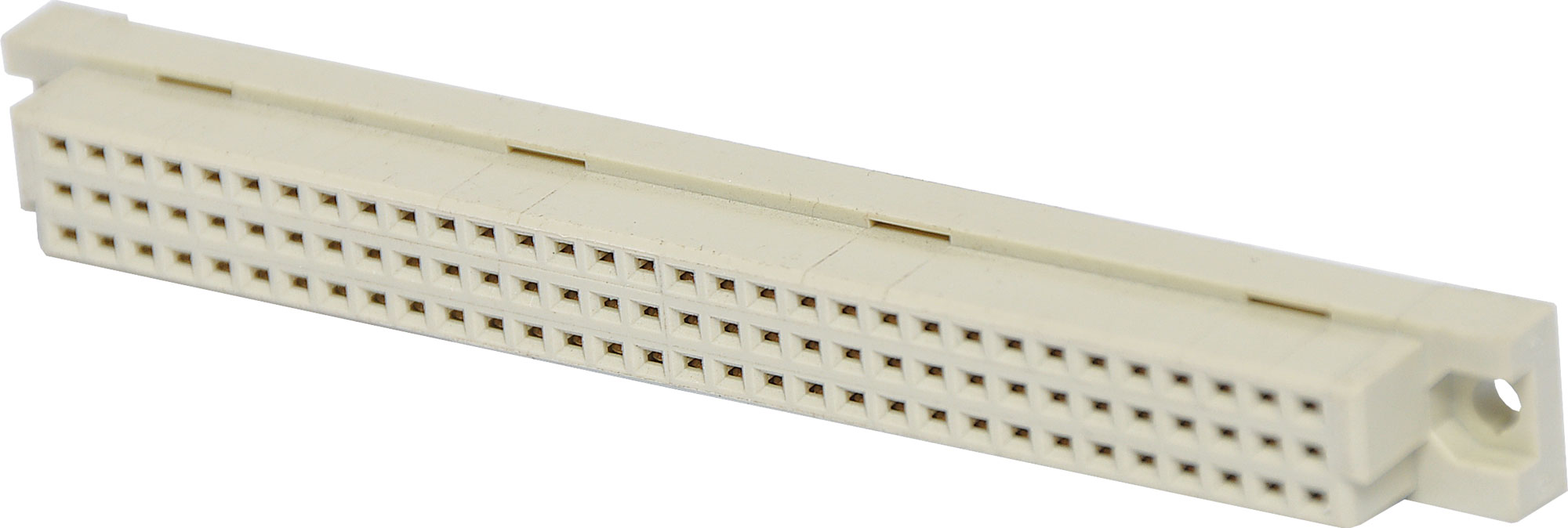

96 Pin Female Rows A-B&C PCB Mount DIN 41612

Manufacturer: Oupiin
SKU: P4996
Moulded glass-filled polyester connectors to DIN 41612 with gold contacts. The plug moulding houses single piece 90 deg. Angled pins on a 0.1 inch pitch between rows, allowing horizontal mounting on Eurocards whilst the mating sockets have flow solde
$6.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $6.27
4+ $5.64
10+ $5.00
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Moulded glass-filled polyester connectors to DIN 41612 with gold-finished contacts. The plug moulding houses single piece 90° angled pins on a 0.1 inch pitch between rows, allowing horizontal mounting on Eurocards whilst the mating sockets have flow solder (4mm) spills. “B” (two row) and “C” (three row) types are available. They also feature integral moulded polarising tabs. Right angle connectors are male gender and straight pin connectors are female.

Specifications:

Proof Voltage: 1000V DC min

  • Max. Current Per Contact: 1.5A
  • Contact Resistance: 15M Ohm max
  • Insulation Resistance: 10¹² Ohms min
  • Temperature Range: -55° C to +125° C

Warranty & Returns

12 Months

We Offer 12 Months for this product
