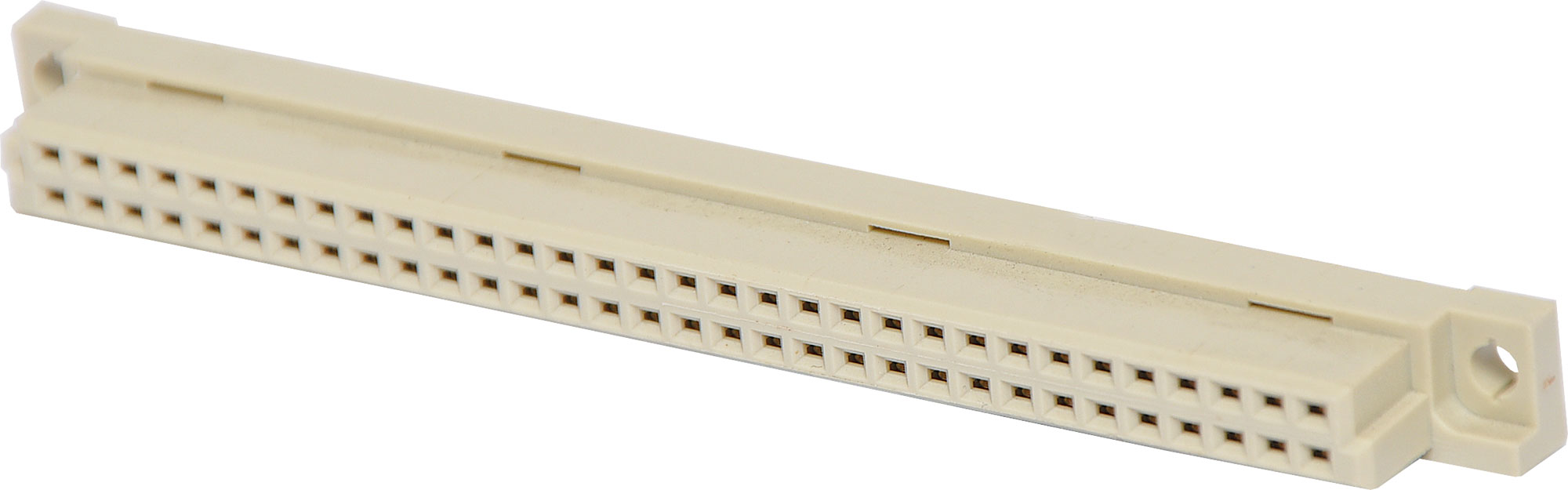

64 Pin Female Row A&B PCB Mount DIN 41612

Manufacturer: Oupiin
Be the first to review this product
Moulded glass-filled polyester connectors to DIN 41612 with gold-finished contacts. The sockets have flow solder (4mm) spills. "B" (two row) and "C" (three row) types are available. They also feature integral moulded polarising tabs.
SKU: P4764
$4.32
Per ea
QuantityPrice
ea$4.32
4+$3.91
10+$3.45

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Moulded glass-filled polyester connectors to DIN 41612 with gold-finished contacts The sockets have flow solder (4mm) spills. “B” (two row) and “C” (three row) types are available. They also feature integral moulded polarising tabs. female connectors are straight pin.

Specifications:

Proof Voltage: 1000V DC min

  • Max. Current Per Contact: 1.5A
  • Contact Resistance: 15M Ohm max
  • Insulation Resistance: 10¹² Ohms min
  • Temperature Range: -55° C to +125° C

12 Months

We Offer 12 Months for this product
