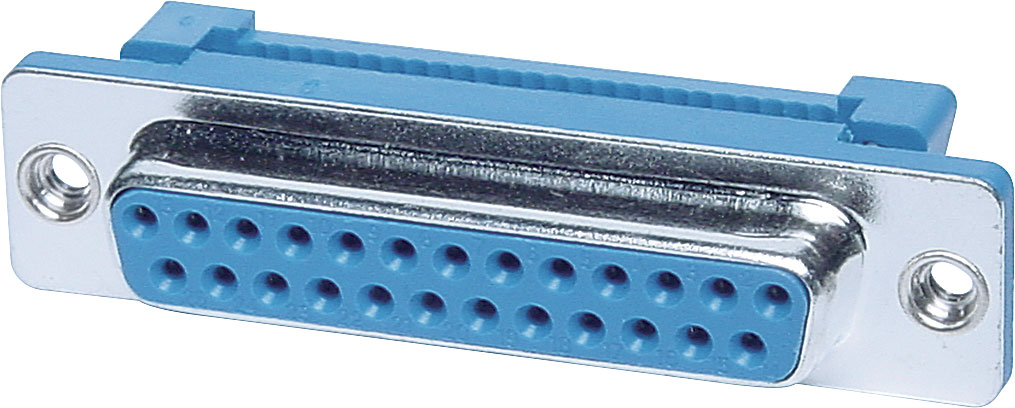

DB25 Female with IDC Termination Metal Version

Manufacturer: Oupiin
Be the first to review this product
OUPIIN D-Series and Flat Cable Connectors are utilised worldwide in digital and computer-based applications. They feature low contact resistance, excellent mechanical characteristics and long term reliability.
SKU: P4153
$3.45
Per ea
QuantityPrice
ea$3.45
10+$3.09
50+$2.73

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

OUPIIN D-Series and Flat Cable Connectors are utilised worldwide in digital and computer-based applications. They feature low contact resistance, excellent mechanical characteristics and long term reliability.





Dimensions:
A: 39
B: 47
C: 53
D: 30.5

Specifications

Contact Resistance: 30M Ohm max @ 100mA DC

  • Insulator Resistance: 1000M Ohm @ 500V DC
  • Current Rating: 1A
  • Contact Material: Gold plated brass
  • (Female IDC Connectors gold plated phosphor bronze)
  • Housing: PBT & 30% Glass Fibre

12 Months

We Offer 12 Months for this product
