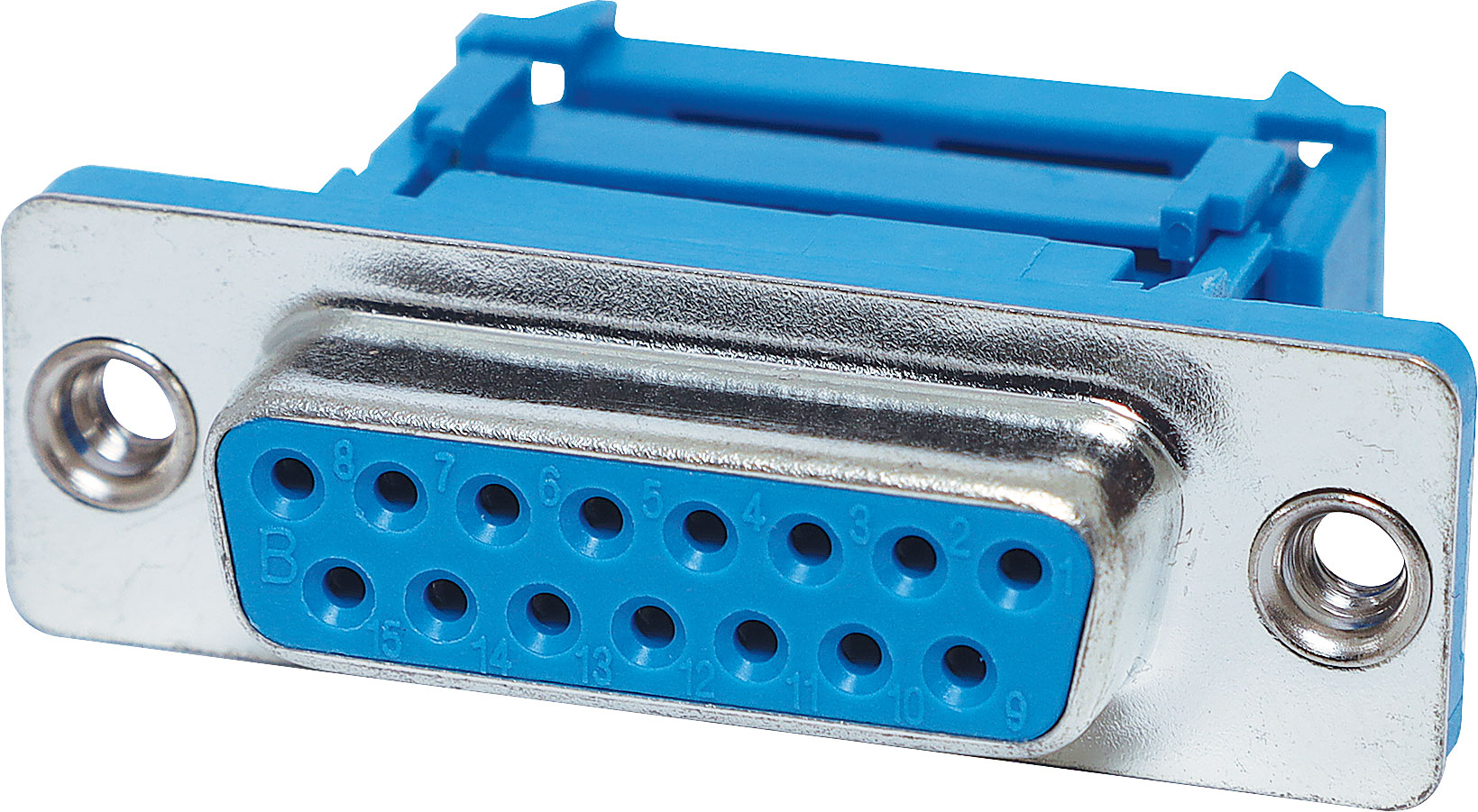

DA15 Female With IDC Termination Metal Version

Manufacturer: Oupiin
Be the first to review this product
OUPIIN D-Series and Flat Cable Connectors are utilised worldwide in digital and computer-based applications.
SKU: P4133A
$3.77
Per ea
QuantityPrice
ea$3.77
10+$3.36
50+$3.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

OUPIIN D-Series and Flat Cable Connectors are utilised worldwide in digital and computer-based applications. They feature low contact resistance, excellent mechanical characteristics and long term reliability.





Dimensions:
A: 24
B: 33
C: 39
D: 18

Specifications

Material

  • Housing: PBT UL94V-0
  • Contacts: Brass, gold plated on contact area and 100u tin plated on wire cutting area over 50u nickel
  • Shell: Steel

Electrical Characteristics

  • Current Rating: 1A
  • Dielectric Withstanding Voltage: 1000V AC
  • Insulation Resistance: 1000MΩ max
  • Contact Resistance: 20MΩ max
  • Operating Temperature: -25°C to +85°C

12 Months

We Offer 12 Months for this product
