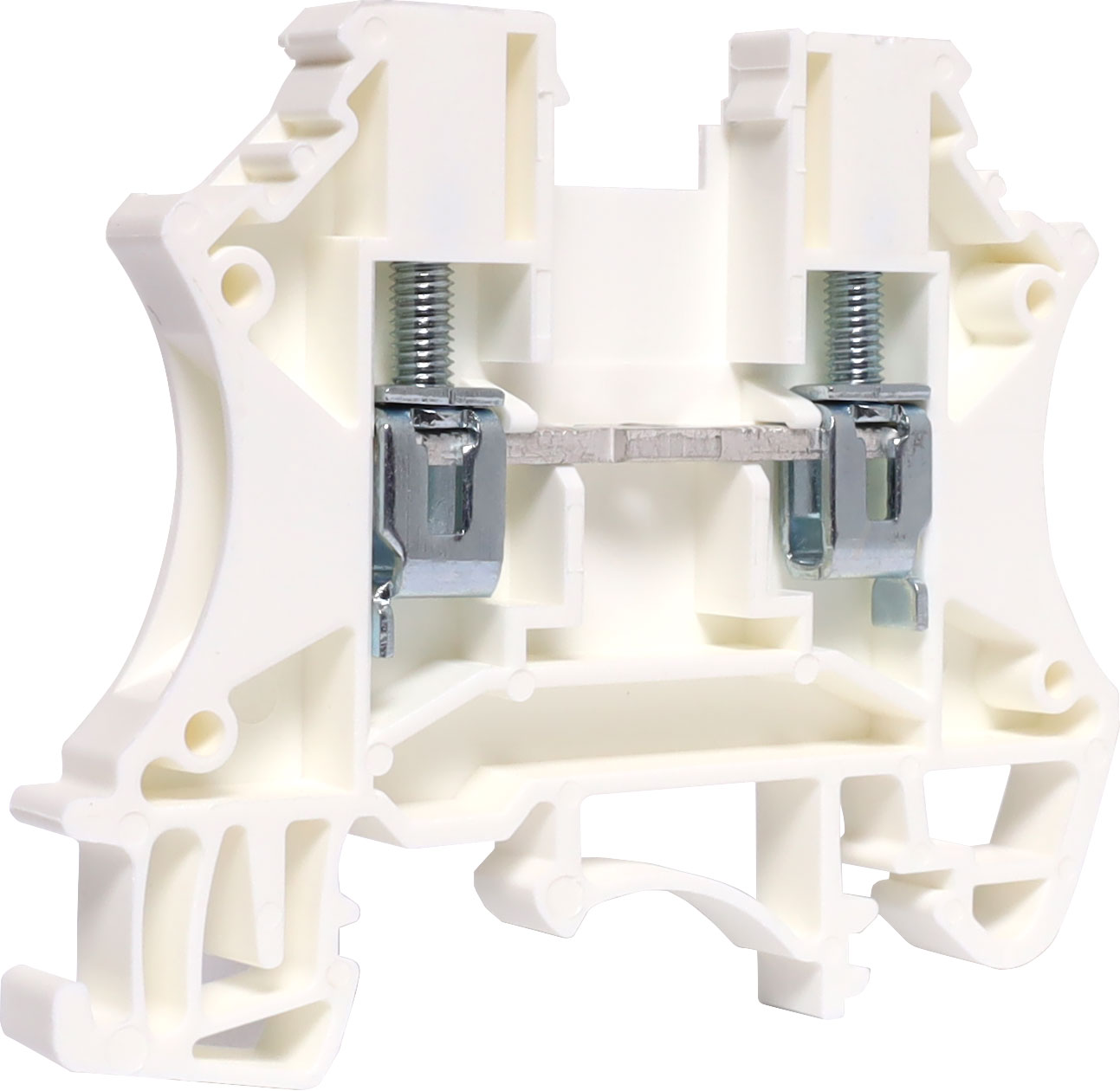

20A 2.5mm White DIN Rail Terminal

Manufacturer: Dinkle
Be the first to review this product
Designed to be ganged together to form as many poles as required to suit your application. Suitable for 2.5mm top hat and asymmetrical “G” Type DIN rail mounts. 600V rated. White.
SKU: P2394
$2.64
Per ea
QuantityPrice
ea$2.64
10+$2.36
50+$2.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Designed to be ganged together to form as many poles as required to suit your application. Suitable for 2.5mm top hat and asymmetrical “G” Type DIN rail mounts.
600V rated. White.

Specifications

General

  • Category: Feed through terminal blocks
  • Colour: White
  • Connection method: Screw connection
  • Type of locking: Rail mounting
  • Dimensions: Length (mm): 40.7L x 5.1W x 39.6Hmm
  • Number of positions: =1P
  • Level: Single level
  • Connection points: 2

Material information

  • Insulation material: PA
  • Insulation material group: I
  • Flame retardant rating , compliant with UL94: V0
  • Insulation resistance: =500MΩ at DC 500V
