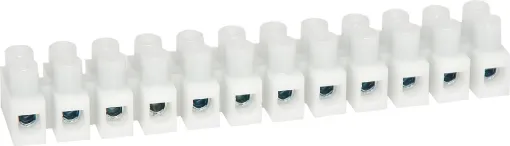

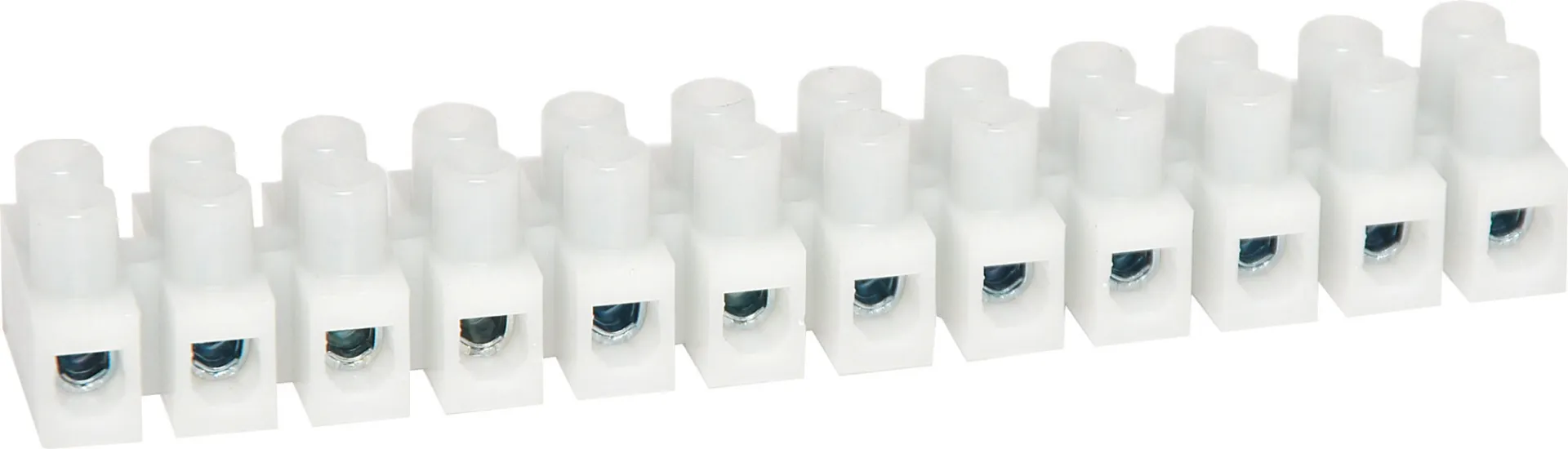

12 Way Wire Protect 57A 500V Terminal Block

SKU: P2151
Wire protect type, rated 500V @ 57A
$7.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $7.27
10+ $6.86
50+ $6.23
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Wire protect type, rated 500V @ 57A.
Wire protect version has a flat spring plate under the screw to prevent damage to cables.

Specifications

Clamping Area: 6 mm2

  • Wire Range: 22AWG - 8AWG Sol/Str
  • Screw: M4 x 9
  • Base: 1.0~2.5 mm Raised Base Type
  • Housing Material: Polyamide 66 (Nylon 66) Flame-retardant to UL 94V-2
  • Temperature Rating: -30°C to T110°C
  • Terminal Insert: Brass metal alloy, nickel plated
  • Screw: Steel, zinc plated
  • Wire Protector (DS): Stainless spring steel

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
