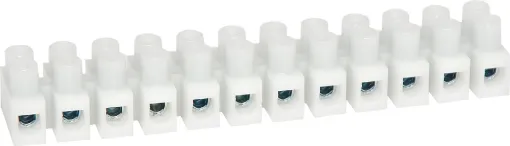

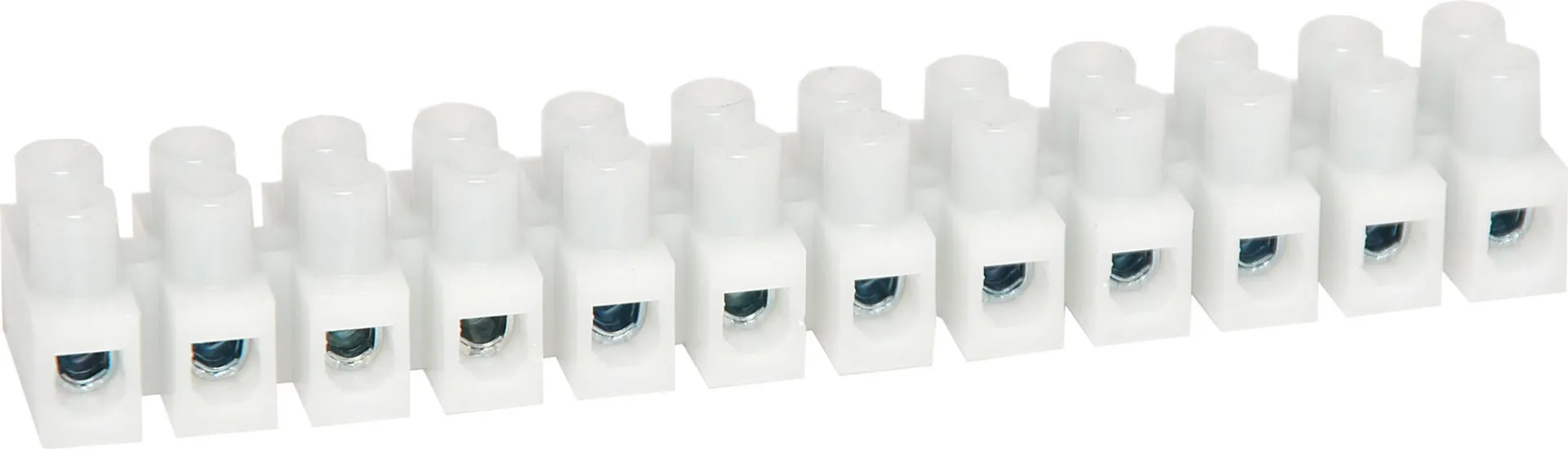

12 Way 57A 500V Terminal Block

SKU: P2150
Standard type, rated 500V @ 57A
$7.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $7.27
10+ $6.86
50+ $6.23
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Standard type, rated 500V @ 57A.

Specifications

Clamping Area: 10mm2

Wire Range: 22AWG - 8AWG Sol/Str

Screw: M4 x9

Base: 1.0~2.5 mm Raised Base Type

Housing Material: Polyamide 66 (Nylon 66) Flame-retardant to UL 94V-2

Temperature Rating: -30°C to T110°C

Terminal Insert: Brass metal alloy, nickel plated

Screw: Steel, zinc plated

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
