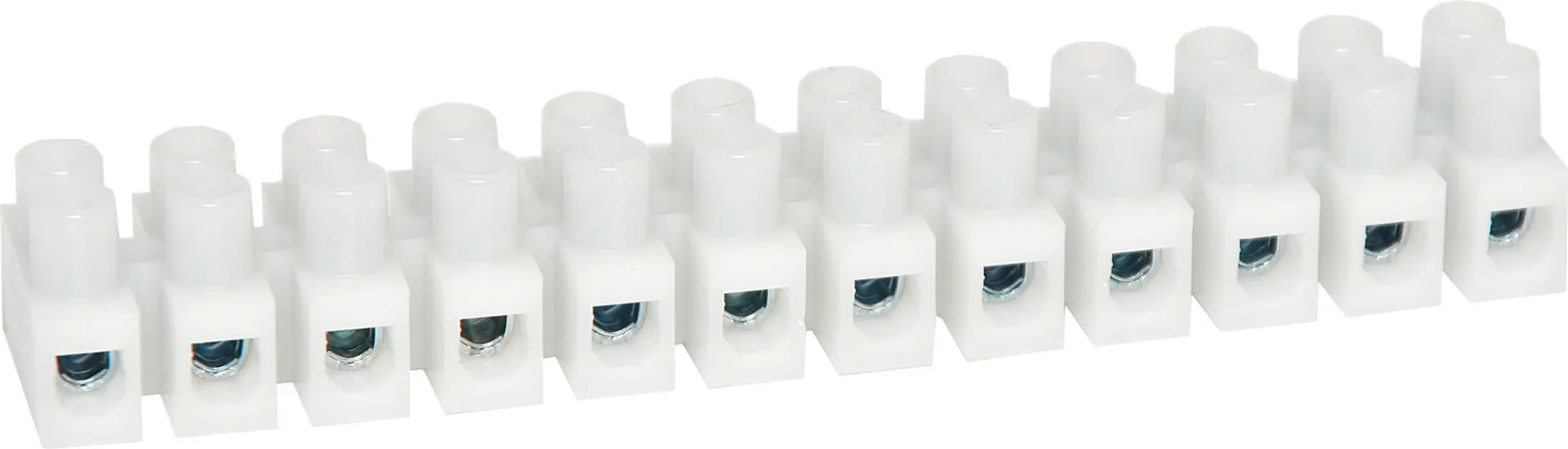

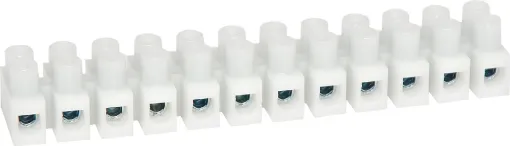

12 Way Wire Protect 41A 600V Terminal Block

Be the first to review this product
Wire protect type, rated 500V @ 41A.
SKU: P2146
$5.36
Per ea
QuantityPrice
ea$5.36
10+$4.91
50+$4.45

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Wire protect type, rated 500V @ 41A.
Wire protect version has a flat spring plate under the screw to prevent damage to cables.

Specifications

ClampingArea : 6 mm2

  • Wire Range: 22AWG - 10AWG Sol/Str
  • Screw: M3.5x7
  • Base:1.0~2.5 mm Raised Base Type
  • Housing Material:Polyamide 66 (Nylon 66) Flame-retardant to UL 94V-2
  • Temperature Rating: -30°C to T110°C
  • Terminal Insert:Brass metal alloy, nickel plated
  • Screw:Steel, zinc plated
  • Wire Protector (DS):Stainless spring steel

12 Months

We Offer 12 Months for this product
