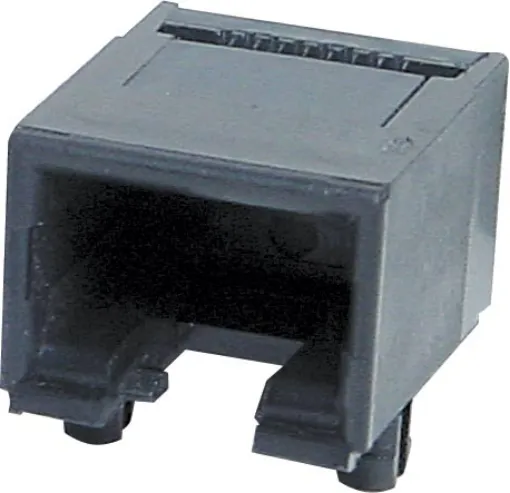

8P8C RJ45 Modular Socket Surface Mount

Manufacturer: Oupiin
SKU: P1478
Housing: PBT Mixed 15% Glass Fibre, 94V-O Contact: Gold Plated Phosphor Bronze Alloy Insulation Resistance: 10M Ohm Minimum Contact Resistance: 20M Ohm Max. per contact Dielectric Withstand Voltage: 1000V AC RMS 60Hz Current Rating: 1.5 Amps Mechanical Life: 500 cycles minimum Retention Strength: 7.7kg between plug & socket
$1.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $1.68
10+ $1.50
40+ $1.36
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Specifications:

Housing: PBT Mixed 15% Glass Fibre, 94V-O

  • Contact: Gold Plated Phosphor Bronze Alloy
  • Insulation Resistance: 10M Ohm Minimum
  • Contact Resistance: 20M Ohm Max. per contact
  • Dielectric Withstand Voltage: 1000V AC RMS 60Hz
  • Current Rating: 1.5 Amps
  • Mechanical Life: 500 cycles minimum
  • Retention Strength: 7.7kg between plug & socket

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
