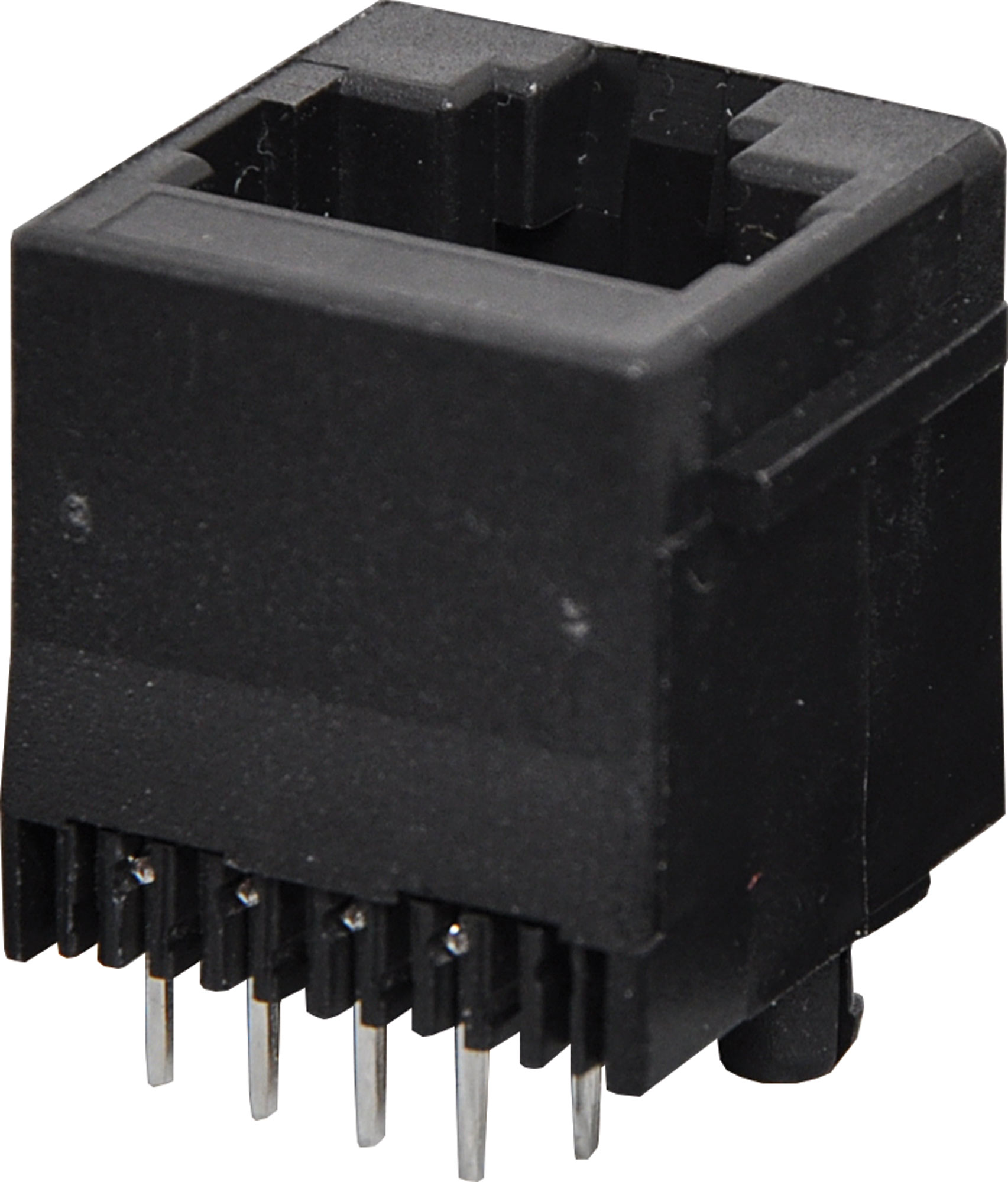

8P8C RJ45 Modular Socket Top Entry PCB Mount

Manufacturer: Oupiin
Be the first to review this product
Housing: PBT Mixed 15% Glass Fibre, 94V-O Contact: Gold Plated Phosphor Bronze Alloy Insulation Resistance: 10M Ohm Minimum Contact Resistance: 20M Ohm Max. per contact Dielectric Withstand Voltage: 1000V AC RMS 60Hz Current Rating: 1.5 Amps Mechanical Life: 500 cycles minimum Retention Strength: 7.7kg between plug & socket
SKU: P1468
$2.18
Per ea
QuantityPrice
ea$2.18
10+$2.00
40+$1.77

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Housing: PBT Mixed 15% Glass Fibre, 94V-O
Contact: Gold Plated Phosphor Bronze Alloy
Insulation Resistance: 10M Ohm Minimum
Contact Resistance: 20M Ohm Max. per contact
Dielectric Withstand Voltage: 1000V AC RMS 60Hz
Current Rating: 1.5 Amps
Mechanical Life: 500 cycles minimum
Retention Strength: 7.7kg between plug & socket

12 Months

We Offer 12 Months for this product
