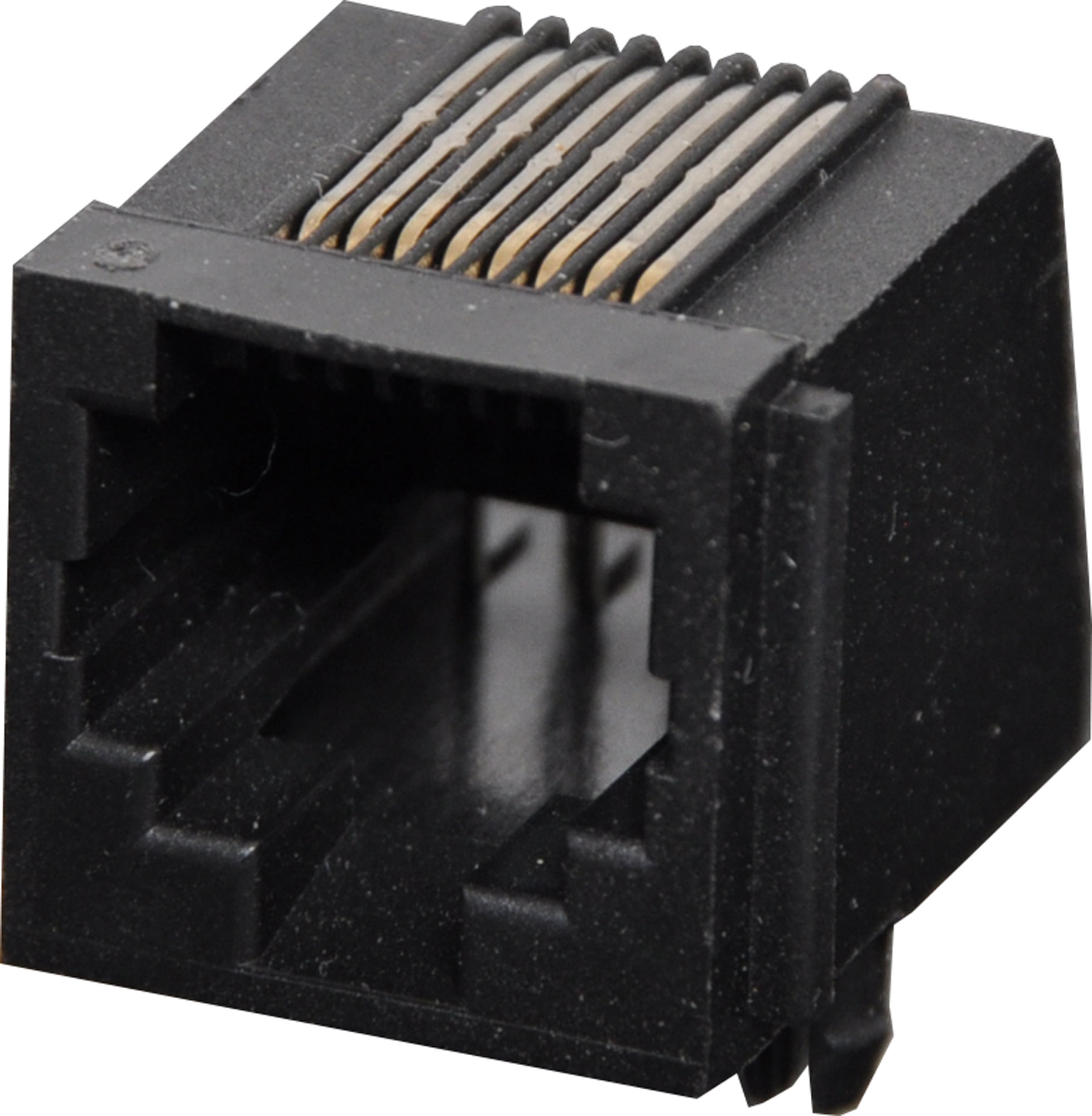

8P8C RJ45 Modular Socket Low Profile PCB Mount

Manufacturer: Oupiin
Be the first to review this product
Housing: PBT Mixed 15% Glass Fibre, 94V-O Contact: Gold Plated Phosphor Bronze Alloy Insulation Resistance: 10M Ohm Minimum Contact Resistance: 20M Ohm Max. per contact Dielectric Withstand Voltage: 1000V AC RMS 60Hz Current Rating: 1.5 Amps Mechanical Life: 500 cycles minimum Retention Strength: 7.7kg between plug & socket
SKU: P1448
$1.45
Per ea
QuantityPrice
ea$1.45
10+$1.27
40+$1.14

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Specifications:

Housing: PBT Mixed 15% Glass Fibre, 94V-O

  • Contact: Gold Plated Phosphor Bronze Alloy
  • Insulation Resistance: 10M Ohm Minimum
  • Contact Resistance: 20M Ohm Max. per contact
  • Dielectric Withstand Voltage: 1000V AC RMS 60Hz
  • Current Rating: 1.5 Amps
  • Mechanical Life: 500 cycles minimum
  • Retention Strength: 7.7kg between plug & socket






A=11.93
B=11.43

12 Months

We Offer 12 Months for this product
