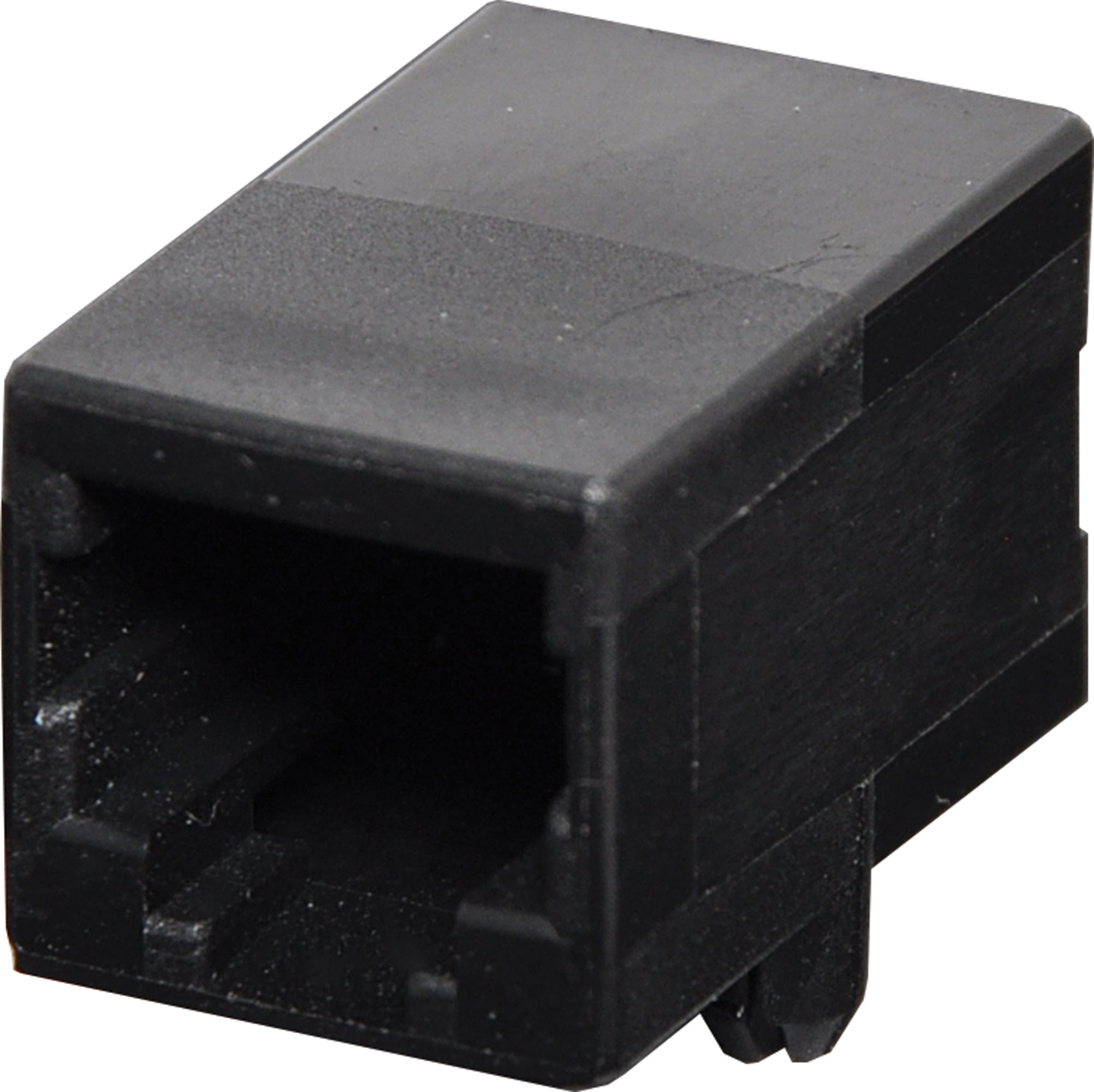

6P6C RJ12 Modular Socket Low Profile Enclosed PCB Mount

Manufacturer: Oupiin
SKU: P1435
Housing: PBT Mixed 15% Glass Fibre, 94V-O Contact: Gold Plated Phosphor Bronze Alloy Insulation Resistance: 10M Ohm Minimum Contact Resistance: 20M Ohm Max. per contact Dielectric Withstand Voltage: 1000V AC RMS 60Hz Current Rating: 1.5 Amps Mechanical Life: 500 cycles minimum Retention Strength: 7.7kg between plug & socket
$1.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $1.36
10+ $1.27
40+ $1.09
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Housing: PBT Mixed 15% Glass Fibre, 94V-O
Contact: Gold Plated Phosphor Bronze Alloy
Insulation Resistance: 10M Ohm Minimum
Contact Resistance: 20M Ohm Max. per contact
Dielectric Withstand Voltage: 1000V AC RMS 60Hz
Current Rating: 1.5 Amps
Mechanical Life: 500 cycles minimum
Retention Strength: 7.7kg between plug & socket

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
