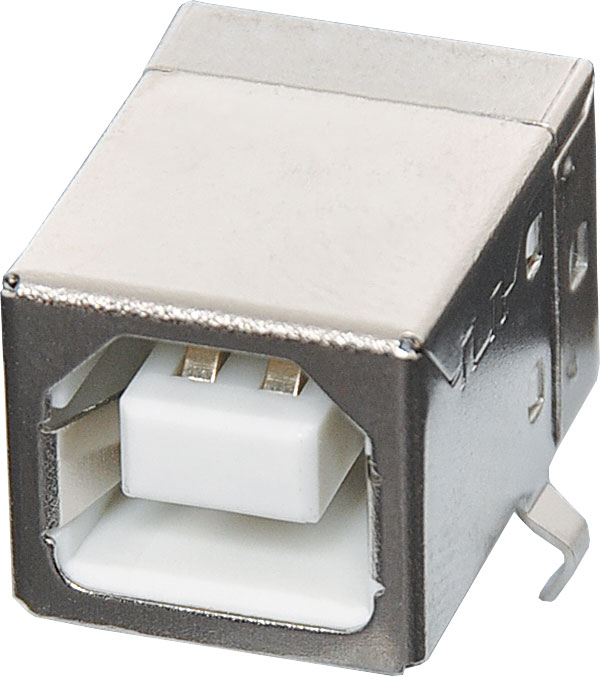

Type B 90 Deg. Horizontal PCB Mount USB 2.0

Manufacturer: Oupiin
SKU: P1304B
Type B, right angle.
$2.86

All Prices Shown are (ex GST)
Bulk Pricing
ea $2.86
10+ $2.55
40+ $2.32
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Type B.
90° Angle.
Horizontal PCB Mount.

Specifications

Material

  • Housing: PBT, UL94V-0
  • Contacts: Brass, gold plated on contact area and tin plated on solder tail over nickel
  • Shell: Brass, 50u nickel plated

Electrical Characteristics

  • Current Rating: 1.5A
  • Dielectric Withstanding Voltage: 500V AC
  • Insulation Resistance: 1000MΩ (min)
  • Contact Resistance: 30MΩ (max)
  • Operating Temperature: -20°C to +85°C

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
