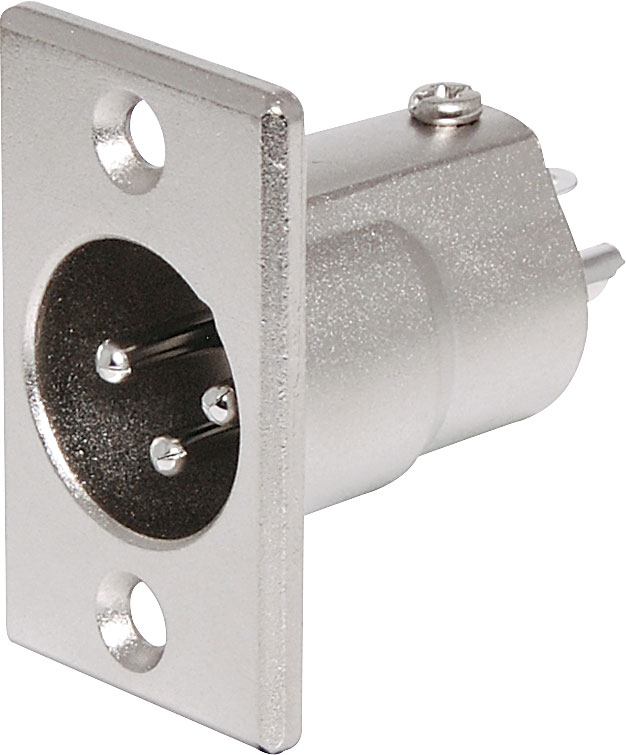

3 Pin Male Chassis Mount XLR AC3MPNZ

Manufacturer: Amphenol
Be the first to review this product
AMPHENOL (formerly Alcatel) connectors are ideal for use in high performance audio applications, including mobile PA use. They represent a no-compromise approach to connector technology, with rugged construction, secure mechanical characteristics and lo
SKU: P0906
$6.73
Per ea
QuantityPrice
ea$6.73
10+$6.36
40+$5.95

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

AMPHENOL (formerly Alcatel) connectors are ideal for use in high performance audio applications, including mobile PA use. They represent a no-compromise approach to connector technology, with rugged construction, secure mechanical characteristics and low induced noise levels. Amphenol Part No.: AC3MPNZ.

Features

  • Zinc die cast shell.
  • The P size housing is the original wide flange front mounting XLR connector.
  • Solder bucket connections.
  • Precision machined or stamped contacts (3 pin only).
  • Leading first mate last break socket contact.
  • Positive latch lock system.

Specifications

Orientation: Vertical

  • Contact Material: Phosphor Bronze
  • Contact Plating: Gold
  • Voltage Rating: 33 V
  • Current Rating: 15 A
  • Mating Cycles: 1000 Cycle
  • Shell Plating: Nickel

12 Months

We Offer 12 Months for this product
