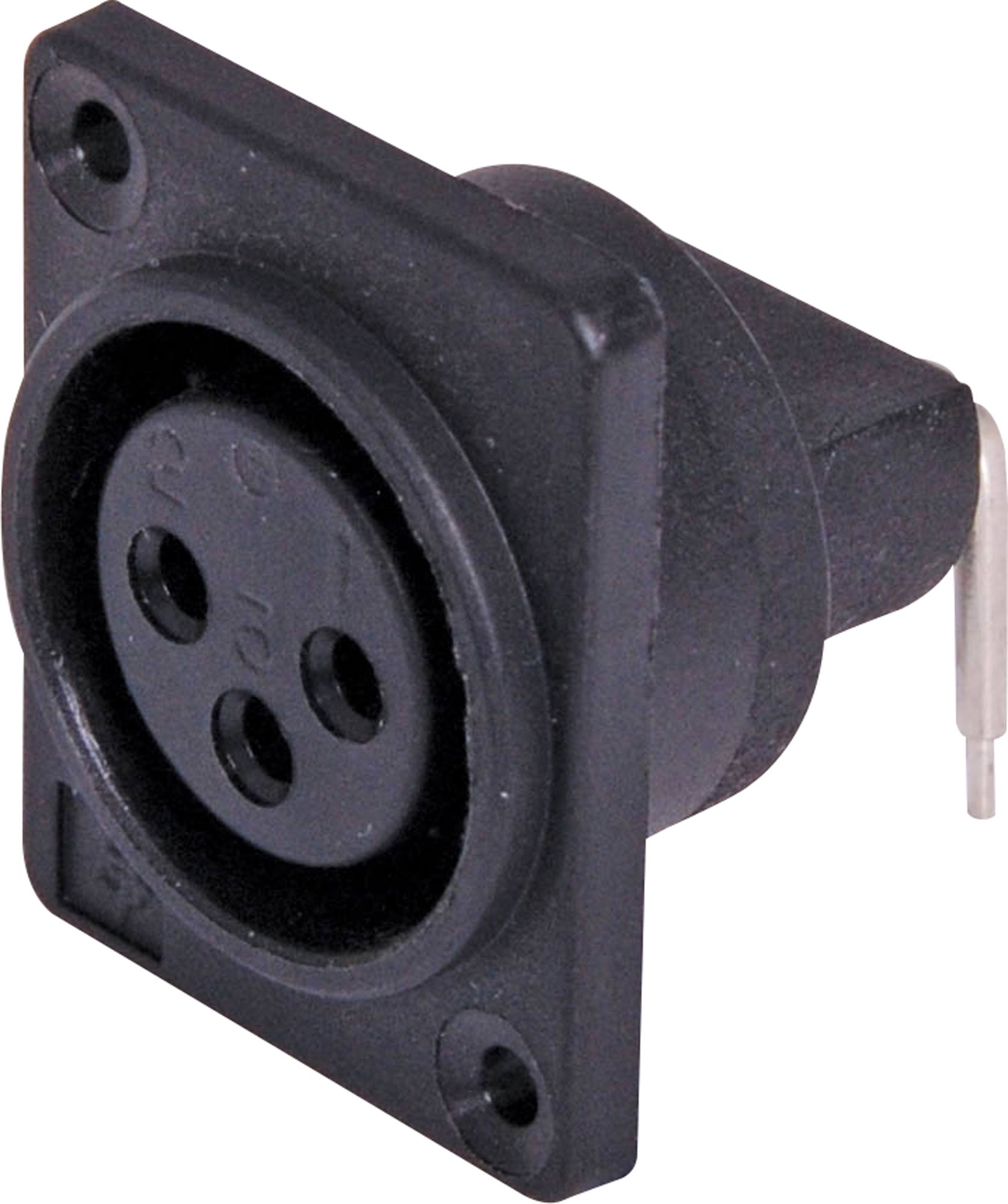

3 Pin Female 90° PCB / Chassis Mount XLR

SKU: P0882
90 deg. PCB mount XLR Female connector
$2.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $2.82
10+ $2.55
40+ $2.27
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

90° PCB mount XLR Female connector

Features

  • 3 circuits male and female type
  • Housing is made of thermoplastic material with Glass fiber
  • Vertical and horizontal P.C. Board mounting are available

Specifications

Life: 10,000 Cycles Min. (Insertion / Withdrawal)

  • Insertion / Withdrawal Force: 3~5 kg·f/cm
  • Contact Resistance: 20 mΩ(Max.)
  • Insulation Resistance: Over 100MΩ
  • Dielectric Withstanding Voltage: 500V AC
  • Contact Rating: 25A, 48V DC

Warranty & Returns

12 Months

We Offer 12 Months for this product
