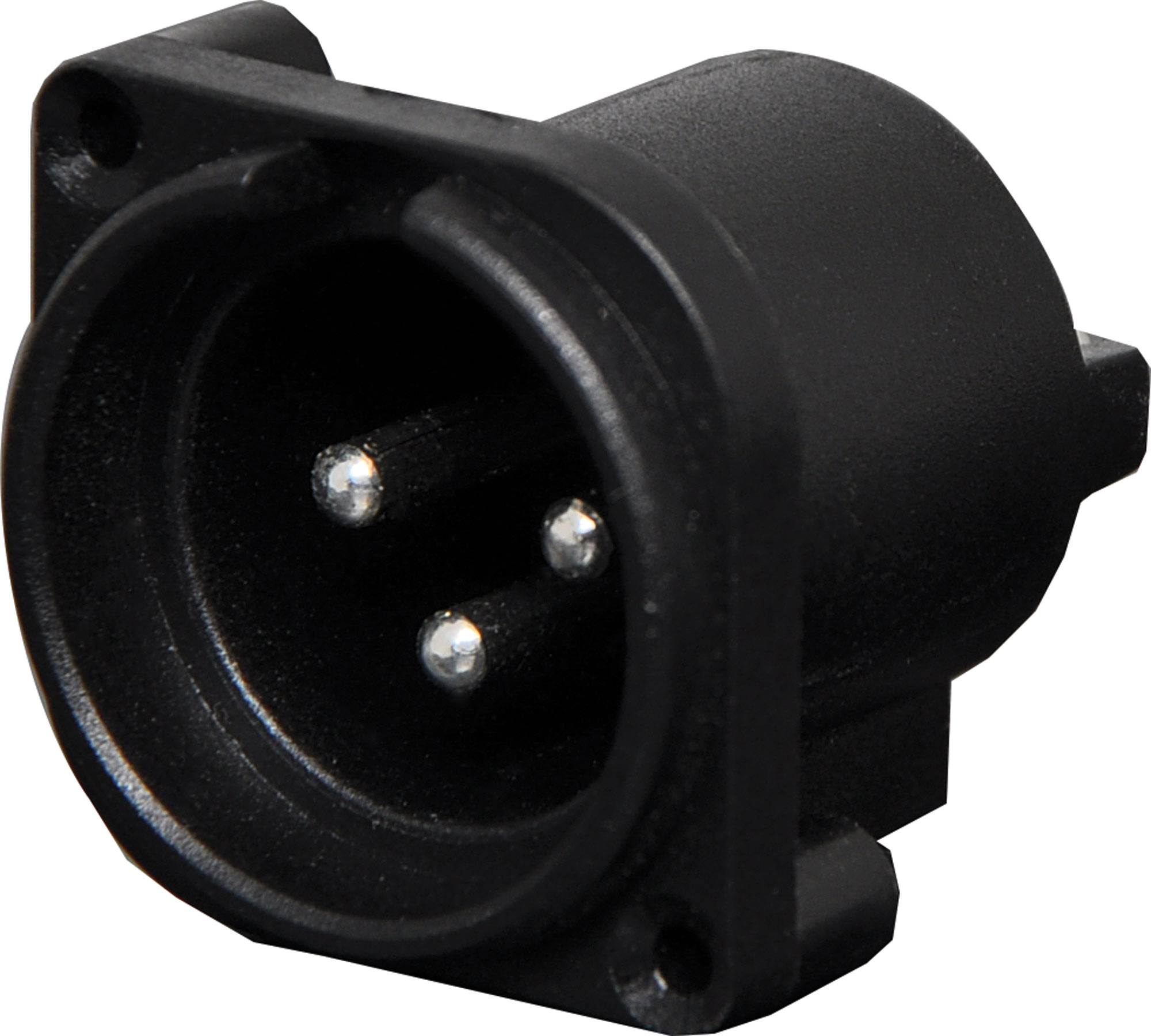

3 Pin Male Horizontal PCB Mount XLR

SKU: P0871
Straight pin PCB mount XLR connectors. These have the same mounting depth as our P 0221 and P 0222 PCB mount RCA sockets, making these ideal for audio input boards.
$2.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $2.77
10+ $2.50
40+ $2.23
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Straight pin PCB mount XLR connectors. These have the same mounting depth as our P 0221 and P 0222 PCB mount RCA sockets, making these ideal for audio input boards.

Features

  • Reduced and compact size (mounting pitch: 20mm)
  • Housing is made of thermoplastic material with Glassfiber
  • Vertical and horizontal P.C. Board mounting are available

Specifications

Life: 10,000 Cycles Min.

  • Insertion / Withdrawal Force: 3~5 kg·f/cm
  • Contact Resistance: 20mΩ(Max.)
  • Insulation Resistance: Over 100MΩ
  • Dielectric Withstanding Voltage: 500V AC
  • Contact Rating: 25A, 48V DC

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
