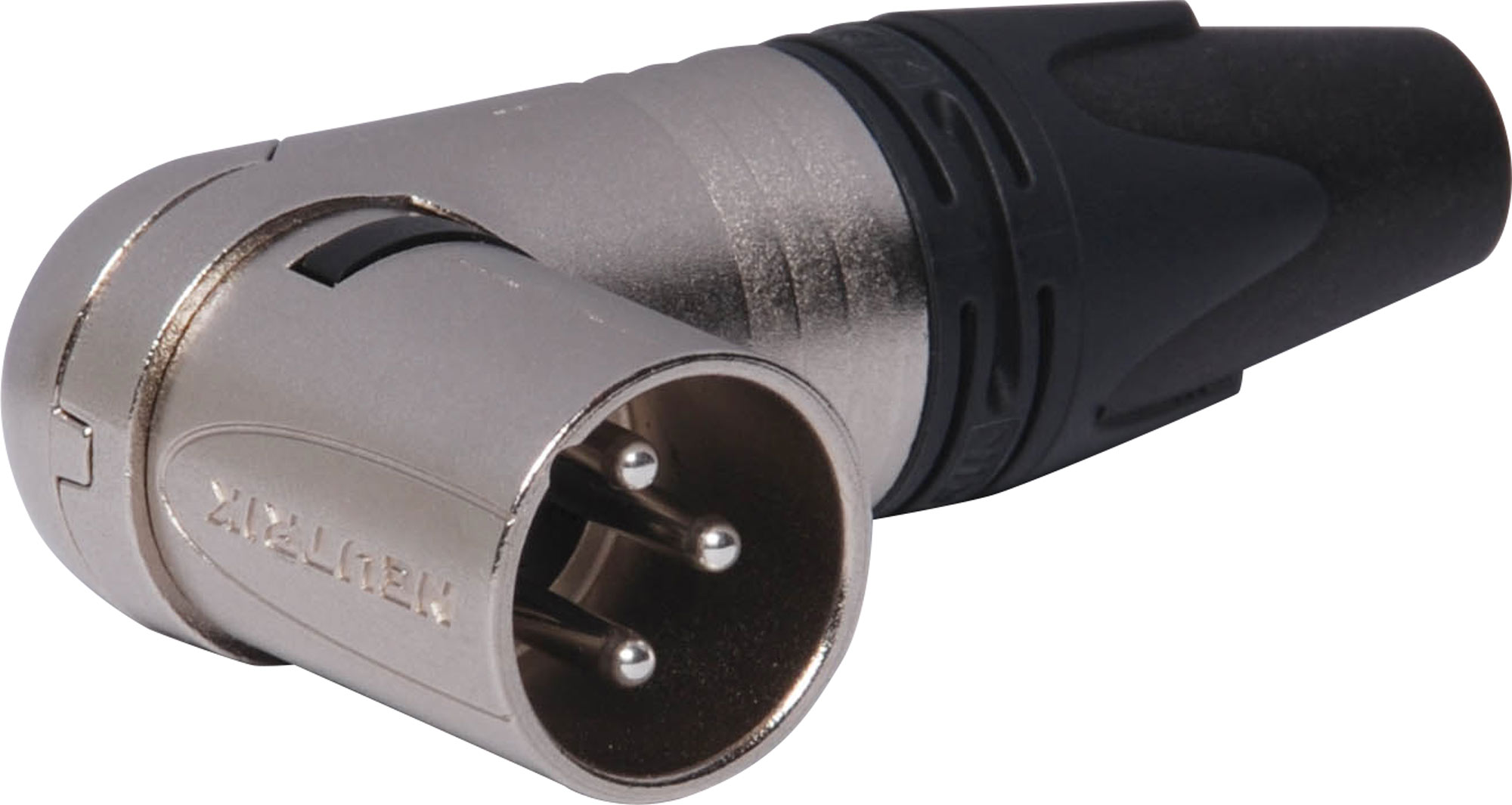

3 Pin Male Line XLR 90 Deg. NC3MRC

Manufacturer: Neutrik
Be the first to review this product
Cable entry angle can be varied 180. Strain relief secures cable from 3 to 6mm. Once connected body extends only 30mm.
SKU: P0862
$19.05
Per ea
Quantity Price
ea $19.05
4+ $17.95
10+ $16.36

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Neutrik NC3MRX with silver finish. Cable entry angle can be varied 180°. Strain relief secures cable from 3 to 6mm. Once connected body extends only 30mm.

Features

  • Extra slim right-angle connector
  • 7 selectable cable outlet positions
  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Sleek and ergonomic design - valuable and handy

Specifications

Electrical

  • Capacitance between contacts: ≤ 4 pF
  • Contact resistance: ≤ 3 mΩ (inner)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 GΩ (initial)
  • Rated current per contact: 16 A
  • Rated voltage: < 50 V

Mechanical

  • Cable O.D.: 3.5 - 8.0 mm
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wire size max.: 2.5 mm²
  • Wire size max.: 14 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock

Material

  • Boot: Polyurethane
  • Contact plating: 2 µm Ag
  • Contacts: Bronze (CuSn8)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Zinc diecast (ZnAl4Cu1)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Strain relief: Polyacetal (POM)

Environmental

  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
