3 Pin Male Chassis Mount XLR NC3MD-L-1

Manufacturer: Neutrik
Be the first to review this product
Neutrik 3 Pin Chassis XLR male connector. Neutrik connectors are made from rugged diecast aluminium and are designed to be compact yet stand up to the rigours of everyday use. RF shielding via 3 point contact to shell. Fitted with threaded M3 mounting
SKU: P0852
$11.77
Per ea
Quantity Price
ea $11.77
10+ $10.45
40+ $9.78

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

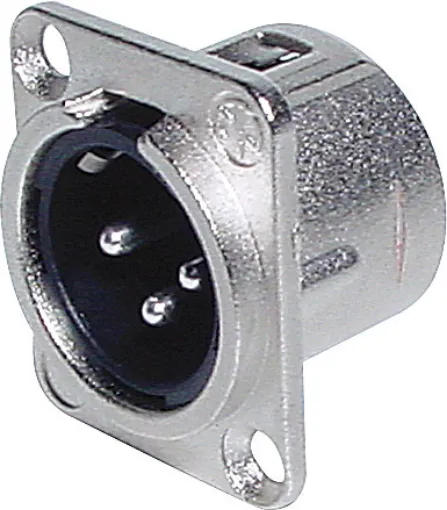

Neutrik 3 pin chassis mount XLR male connector.

Neutrik connectors are made from rugged die cast aluminium and are designed to be compact yet stand up to the rigours of everyday use. RF shielding via 3 point contact to shell. Fitted with threaded M3 mounting holes.

Mounting hole centres and panel dimensions are the same as Amphenol''s "D" series connectors (see P 0903 on). However the Neutrik connector features a more compact design overall, with less depth required behind the panel for mounting.

Features

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups on 3 - 7 pole version

Specifications

Electrical

  • Capacitance between contacts; ≤ 4 pF
  • Contact resistance; ≤ 5 mΩ (inner)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 16 A
  • Rated voltage: < 50 V

Mechanical

  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Mounting direction: front
  • Chassis shape: D
  • Material
  • Contact plating: 2 µm Ag over 2 µm Ni
  • Contacts: Brass (CuZn35Pb2)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel

Environmental

  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
