3 Pin Female Chassis Mount XLR NC3FD-L-1

Manufacturer: Neutrik
SKU: P0850

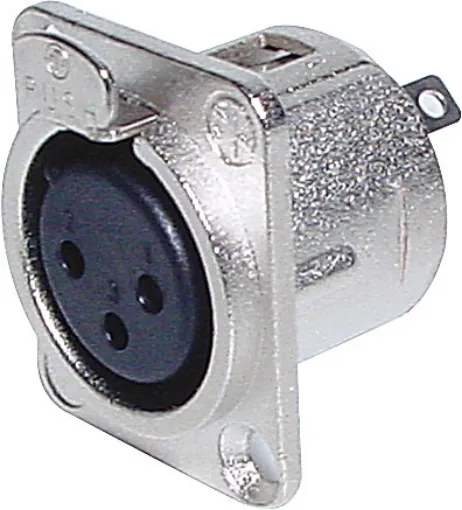

Neutrik 3 Pin Chassis XLR female connector. Neutrik connectors are made from rugged diecast aluminium and are designed to be compact yet stand up to the rigours of everyday use. RF shielding via 3 point contact to shell. Fitted with M3 mounting holes.
$10.68

All Prices Shown are (ex GST)

Bulk Pricing
ea $10.68
10+ $10.00
40+ $9.05
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Neutrik 3 pin chassis mount XLR female connector.

Neutrik connectors are made from rugged die cast aluminium and are designed to be compact yet stand up to the rigours of everyday use. RF shielding via 3 point contact to shell. Fitted with M3 mounting holes.

Mounting hole centres and panel dimensions are the same as Amphenol''s "D" series connectors (see P 0903 on). However the Neutrik connector features a more compact design overall, with less depth required behind the panel for mounting.

Features

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups on 3 - 7 pole version

Specifications

Electrical

  • Capacitance between contacts: ≤ 4 pF
  • Contact resistance: ≤ 5 mΩ (inner)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 GΩ (initial)
  • Rated current per contact: 16 A
  • Rated voltage: < 50 V

Mechanical

  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wire size max.: 2.5 mm²
  • Wire size max.: 14 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Chassis shape: D

Material

  • Contact plating: 2 µm Ag over 2 µm Ni
  • Contacts: Bronze (CuSn8)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel

Environmental

  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
