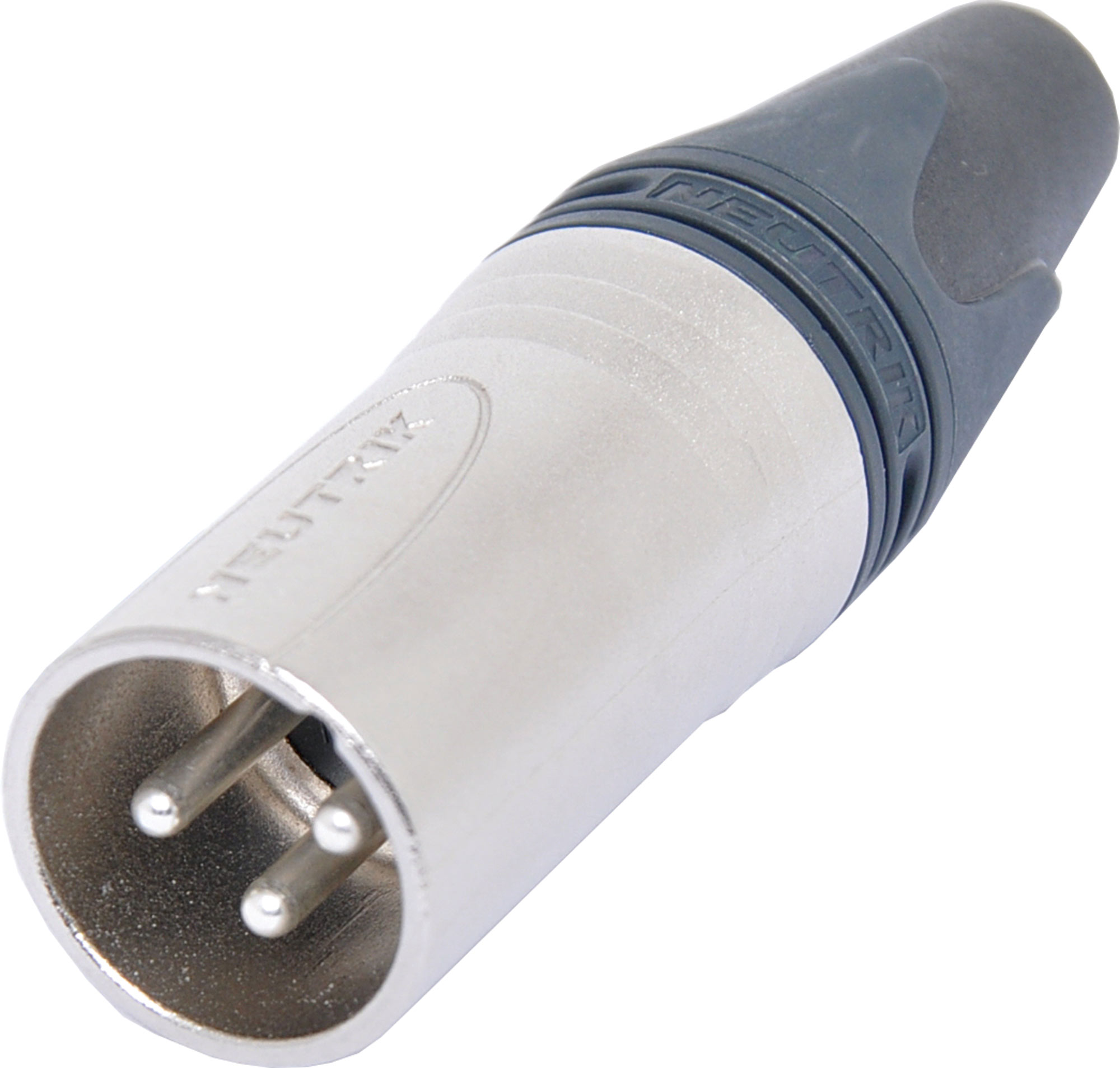

3 Pin Male Line XLR NC3MXX

Manufacturer: Neutrik
Be the first to review this product
Neutrik 3 Pin Line XLR male connector. Neutrik connectors are made from rugged diecast aluminium and are designed to be compact yet stand up to the rigours of everyday use. Connector assembly is designed to be as simple as possible, saving you time wh
SKU: P0842
$9.77
Per ea
Quantity Price
ea $9.77
10+ $9.32
40+ $8.64

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Neutrik NC3MXX 3 Pin Line XLR male connector with silver finish. Neutrik connectors are made from rugged die cast aluminium and are designed to be compact yet stand up to the rigours of everyday use. Connector assembly is designed to be as simple as possible, saving you time when making cables.

Features

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc die cast shell, long lasting and dependable
  • Internal thread on shell is well protected against any damage

Specifications

Electrical

  • Capacitance between contacts: = 4 pF
  • Contact resistance: = 3 mΩ (inner)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: >10 GΩ (initial)
  • Rated current per contact: 16A
  • Rated voltage: < 50V

Mechanical

  • Cable O.D.: 3.5 - 8.0 mm
  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: >1000 mating cycles
  • Wire size max.: 2.5 mmĀ² (14AWG)
  • Wiring: Solder contacts
  • Locking device: Latch lock

Material

  • Boot: Polyurethane
  • Contact plating: 2 Āµm Ag
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Zinc die cast (ZnAl4Cu1)
  • Shell: Zinc die cast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Strain relief: Polyacetal (POM)

Environmental

  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 Ā°C to +80 Ā°C
