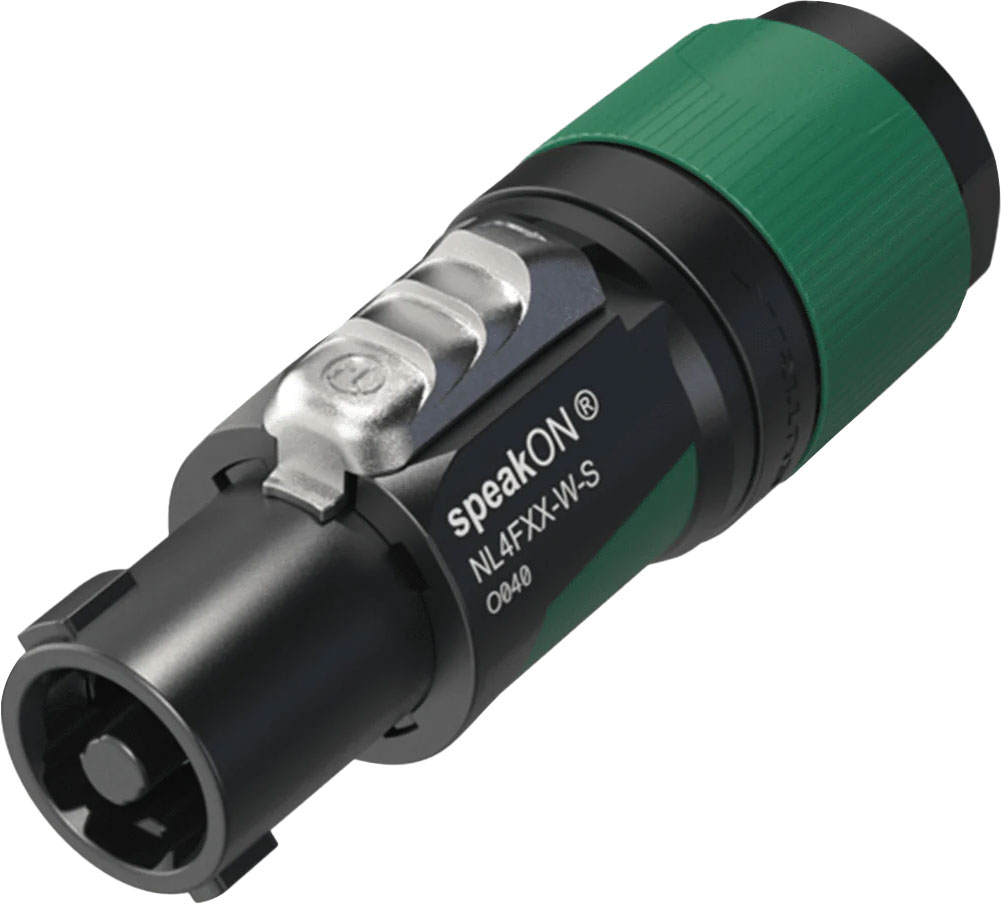

Speakon 4 Pole Line Plug Connector NL4FXX-W-S

Manufacturer: Neutrik
Be the first to review this product
The Neutrik NL4FXX-W-S 4-pole speakON cable connector has a screw terminal assembly and chuck type strain relief for cable diameters 6 to 12 mm.
SKU: P0795A
$20.91
Per ea
QuantityPrice
ea$20.91
5+$18.18
20+$17.23

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The all-new Neutrik NL4FXX-W-S 4-pole speakon connector replaces the NL4FX. The Neutrik NL4FXX-W-S 4-pole speakON cable connector has a screw terminal assembly and chuck type strain relief for cable diameters 6 to 12 mm.

Neutrik speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection

Attention: speakON is NOT to be used as an AC mains or power supply connector!

Features

  • Up to 37 A rms current rating
  • Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mm
  • IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Easy and reliable twist lock system
  • Ergonomic design with slip-proof two-component molded housing
  • Improved kink protection by two-component bushing

Specifications

Electrical

  • Contact resistance = 2 mΩ
  • Dielectric strength 2.8 kVac
  • Insulation resistance > 10 GΩ (initially)
  • Number of electrical contacts 4
  • Rating Europe IEC 61984: 37 A 250 V AC
  • Rating USA UL1977: 35 A 250 V AC
  • Rating Canada CSA C22.2 No.182.3: 24 A 250 V AC

Mechanical

  • Cable O.D. 6 – 12 mm
  • Lifetime typically 5000 mating cycles
  • Wiresize (mm²) 1.5 – 4 mm²
  • Wiresize (AWG) 17 – 11 AWG
  • Locking device Twist lock
  • Termination screw type terminals

Material

  • Contact plating Ag
  • Contacts Copper Alloy
  • Insert Polyamide (PA6.6)
  • Locking element Zinc diecast
  • Shell Polyamide (PA6) / TPE
  • Strain relief Polyketone
  • Bushing Polypropylene / TPE

Environmental

  • Temperature range -33 °C to +80 °C
  • Protection class IP20
  • Flammability acc. to UL94 V-0
