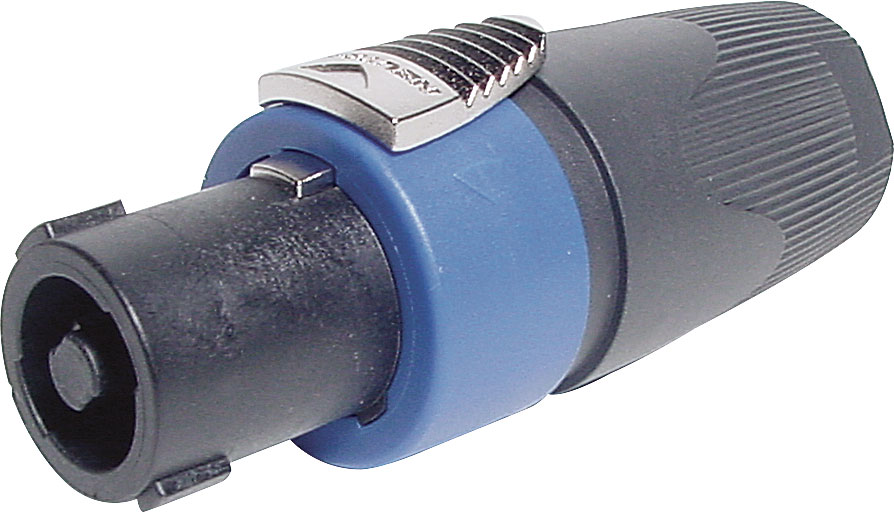

Speakon Line Plug Connector NL4FX

Manufacturer: Neutrik
Be the first to review this product
Heavy duty, robust construction. As used on many professional amplifiers and speaker boxes. Handles up to 30A current and the inline plug can accept up to 8mm cable diameter. Genuine Speak-On connector manufactured by Neutrik.
SKU: P0795
$17.05
Per ea
Quantity Price
ea $17.05
5+ $15.00
20+ $13.59

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Heavy duty Neutrik Speakon NL4FX speaker connector, as used on many professional amplifiers and speaker boxes. Handles up to 30A current and the inline plug can accept up to 12mm cable diameter. Genuine Speak-On connector manufactured by Neutrik.

Attention: speakON is NOT to be used as an AC mains or power supply connector!

Features

  • Current rating 40 A rms continuous
  • Up to 50 A audio signal, duty cycle 50%
  • Only 3 parts, easy to assemble
  • High impact materials - long-lasting and reliable
  • Easy and extremely precise locking system "Quick Lock"
  • Improved grip on latch
  • 1 piece strain relief, chuck for 7 to 14.5 mm cable O.D.
  • Improved screw-type termination for highest pull-out force

Specifications

Electrical

  • Contact resistance: < 2 mΩ (inner) (after lifetime)
  • Dielectric strength: 4 kVdc (peak)
  • Insulation resistance: > 1 GΩ (after dampheat)
  • Rated current per contact: 40A rms continuous
  • Rated current per contact: 50A audio signal, duty cycle 50 %
  • Rated voltage: 250 V (Insulation)

Mechanical

  • Cable O.D.: 7 - 14.5 mm
  • Cable retention: ≥ 220 N (subject to cable O.D. and material)
  • Lifetime: > 5000 mating cycles
  • Wire size: 4 mmĀ²
  • Wire size: 12 AWG
  • Wiring: screw type terminals
  • Locking device: Quick Lock (latch)

Material

  • Contact plating: 4 Āµm Ag
  • Contacts: Brass (CuZn39Pb3)
  • Insert: PBTP 20 % GR
  • Locking element: Zinc diecast (ZnAl4Cu1)
  • Shell: PBTP 20 % GR
  • Strain relief: Polyacetal (POM)

Environmental

  • Flammability: UL 94 HB
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 Ā°C to +80 Ā°C

12 Months

We Offer 12 Months for this product
