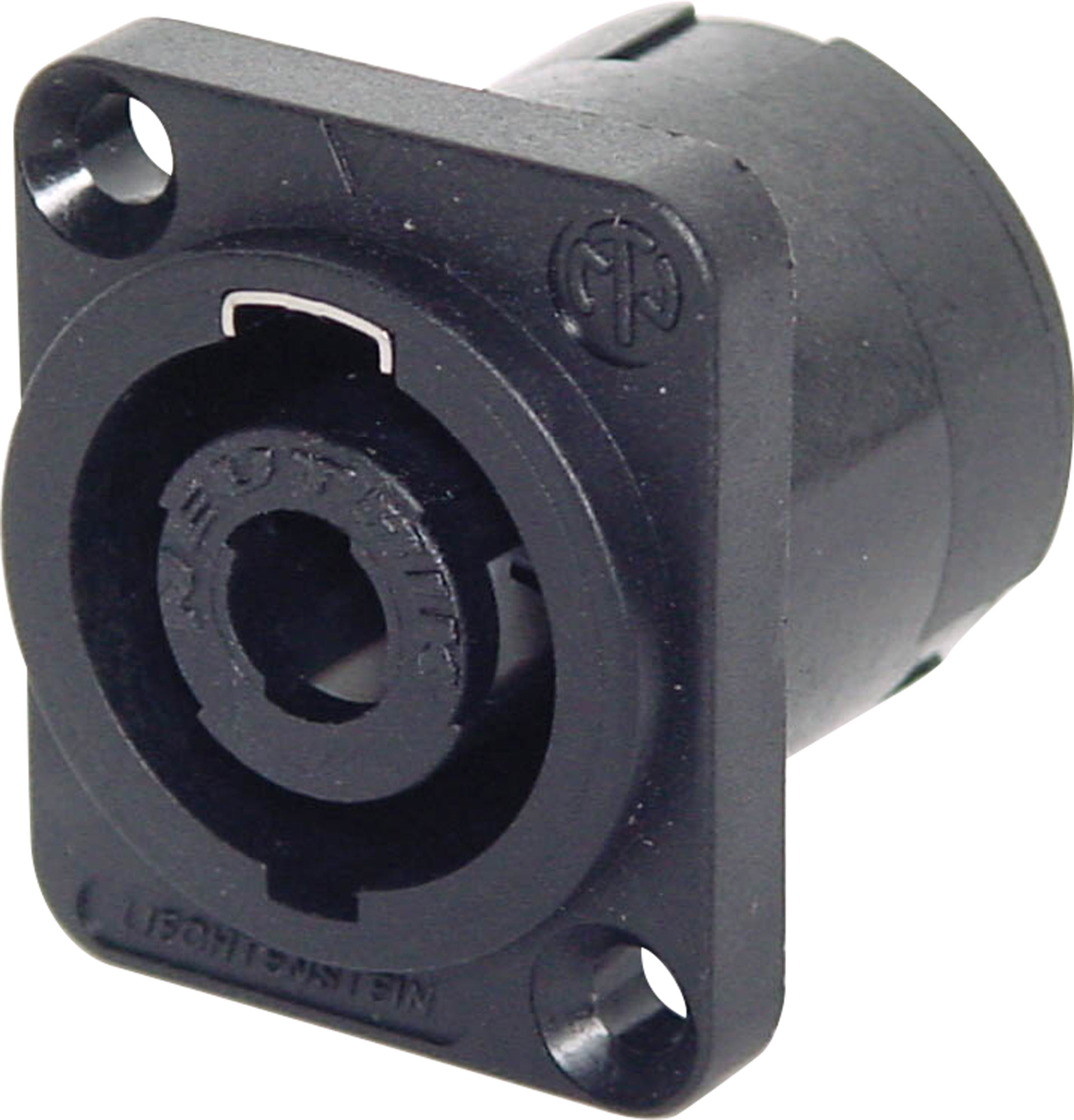

Speakon Socket Chassis Mount NL4MP

Manufacturer: Neutrik
Be the first to review this product
Heavy duty 4 pin connectors as used on professional amplifiers and speaker boxes. Handles up to 30A current. Genuine Speak-On connector manufactured by Neutrik.
SKU: P0792
$8.41
Per ea
QuantityPrice
ea$8.41
5+$7.95
20+$6.32

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Heavy duty 4 pin Neutrik SpeakOn NL4MP connectors as used on professional amplifiers and speaker boxes. Handles up to 30A current. Genuine SpeakOn connector manufactured by Neutrik.

Attention: speakON is NOT to be used as an AC mains or power supply connector!

Features

  • Current rating 30A RMS
  • Glass reinforced materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimised for speaker applications

Specifications

Electrical

  • Contact resistance: = 3mΩ (inner) (after lifetime)
  • Dielectric strength: 4kVdc (peak)
  • Insulation resistance: >1 GΩ (after damp heat)
  • Rated current per contact: 30A rms continuous
  • Rated current per contact: 40A audio signal, duty cycle 50 %
  • Rated voltage: 250V (Insulation)
  • Lifetime: >5000 mating cycles
  • Locking device: Quick Lock
  • Chassis shape: D
  • Layouts: Standard hole position, through holes

Material

  • Contact plating: 4µm Ag
  • Contacts: Bronze (CuSn6)
  • Shell: Polyamide (PA 6 30 % GR) black

Environmental

  • Flammability: UL 94 HB
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
