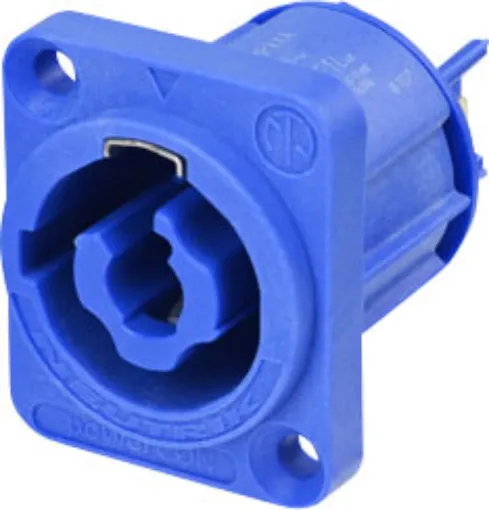

Powercon Male Chassis Plug 240V Mains 16A NAC3MPXXA

Manufacturer: Neutrik
Be the first to review this product
Extra heavy duty Neutrik Powercon connector as used in commercial lighting and audio applications. NAC3MPXXA. SAA approved.
SKU: P0775A
$11.36
Per ea
QuantityPrice
ea$11.36
5+$10.86
10+$10.23

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Extra heavy duty Neutrik Powercon connector as used in commercial lighting and audio applications.
NAC3MPXXA. SAA approved.

When connecting to mains power this must be installed by a licensed electrician.
To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.


Features

  • Locking 250 V ac appliance coupler
  • 3 contacts for line, neutral and premating safety ground
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • User friendly latch design for easy handling

Specifications

Electrical

  • Contact resistance: = 2 mΩ
  • Dielectric strength: 4 kVdc / 2.8 kVac
  • Insulation resistance: > 10 GΩ (initial)
  • Number of electrical contacts: 2 + PE
  • Rating Europe EN 60320-1: 16 A 250 V AC
  • Rating USA UL 60320-1:20 A 127 V AC, UL 1977: 20 A 250 V AC

Mechanical

  • Lifetime: > 5000 mating cycles
  • Wiresize: 2,5 mm²
  • Wiresize: 12 AWG

Material

  • Contact plating: Ag
  • Locking element: Stainless steel
  • Shell: Polyamide (PA 6.6)
  • Contacts: Copper Alloy

Environmental

  • Flammability: UL 94 V-0
  • Protection class: IP 20
  • Temperature range: -30 °C to +80 °C

12 Months

We Offer 12 Months for this product
