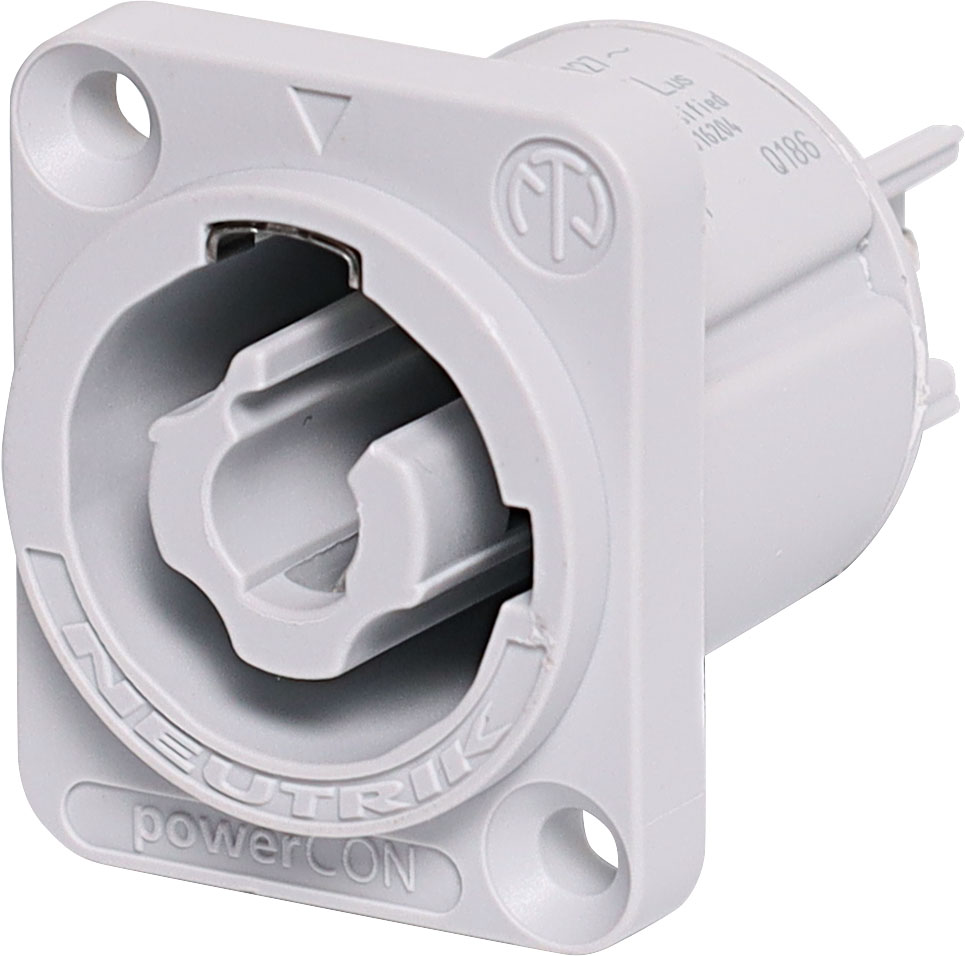

Powercon Chassis Plug 240V 16A NAC3MPB-1

Manufacturer: Neutrik
SKU: P0774
Extra heavy duty Neutrik Powercon connector as used in commercial lighting and audio applications. Power Out. NAC3MPB-1. SAA approved.
$12.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $12.27
5+ $11.77
10+ $10.68
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Extra heavy duty Neutrik Powercon connector as used in commercial lighting and audio applications. Power Out. NAC3MPXXB. SAA approved.




When connecting to mains power this must be installed by a licensed electrician.
To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.


Features

  • Lockable single phase connector
  • 3 contacts for line, neutral and premating safety ground
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • User friendly latch design for easy handling

Specifications

Electrical

  • Contact resistance: = 2mΩ
  • Dielectric strength: 4 kVdc / 2.8 kVac
  • Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
  • Number of electrical contacts: 2 + PE
  • Rating Europe: EN 60320-1: 16 A 250 V AC
  • Rating USA: UL 60320-1:20 A 127 V AC, UL 1977: 20 A 250 V AC

Mechanical

  • Lifetime: > 5000 mating cycles
  • Wiresize: 2.5mm²
  • Wiresize: 12 AWG

Material

  • Contact plating: Ag
  • Locking element: Stainless steel
  • Shell: Polyamide (PA 6.6)
  • Contacts: Copper Alloy

Environmental

  • Flammability: UL 94 V-0
  • Protection class: IP 20
  • Temperature range: -30 °C to +80 °C
