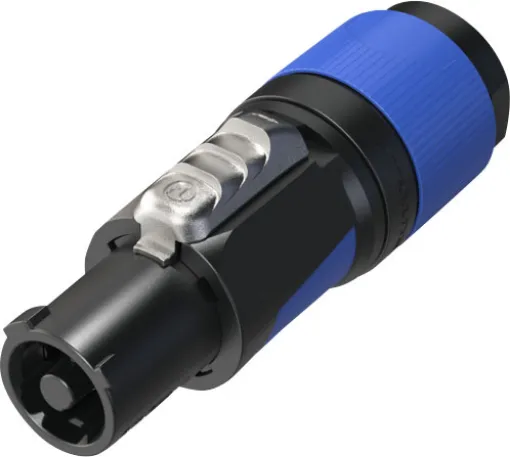

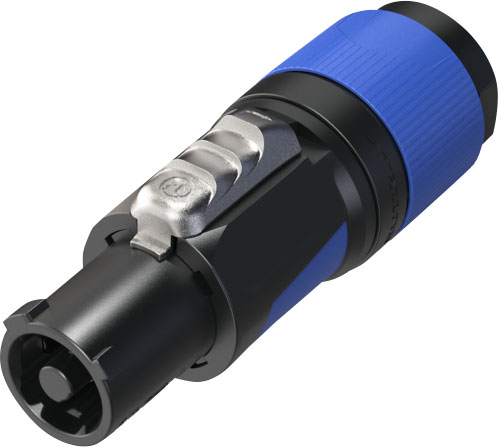

Powercon Line Socket 240V Mains 16A NAC3FXXA-W-S

Manufacturer: Neutrik
Be the first to review this product
Extra heavy duty Neutrik Powercon connector as used in commercial lighting and audio applications. NAC3FXXA-W-S. SAA approved.
SKU: P0773A
$20.86
Per ea
QuantityPrice
ea$20.86
5+$19.32
10+$17.73

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Extra heavy duty Neutrik Powercon connector as used in commercial lighting and audio applications. NAC3FXXA-W-S. SAA approved.






When connecting to mains power this must be installed by a licensed electrician.
To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.


Features

  • IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
  • Ergonomic design with slip-proof two-component moulded housing
  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy and reliable twist lock system
  • Improved kink protection by two-component bushing

Specifications

Electrical

  • Contact resistance: = 2 mΩ
  • Dielectric strength: > 3 kVac (after mating cycles)
  • Insulation resistance: > 10 GΩ (initially)
  • Number of electrical contacts: 2 + PE
  • Rating Europe: EN 60320-1: 16 A 250 V AC, CBC
  • Rating USA / Canada: cUL 60320-1: 20 A 127 V AC, CBC

Mechanical

  • Cable O.D.: 6 - 12 mm
  • Lifetime: Typically 5000 mating cycles
  • Wire size (mm²): 1.5 – 2.5 mm²
  • Wire size (AWG): 16 – 12 AWG
  • Locking device: Twist lock
  • Termination: Screw type terminals

Material

  • Contact plating: Ag
  • Contacts: Copper Alloy
  • Insert: Polyamide (PA6.6)
  • Locking Element: Zinc diecast
  • Shell: Polyamide (PA6) / TPE
  • Strain relief: Polyketone
  • Bushing: Polypropylene / TPE

Environmental

  • Temperature range: -33 °C to +80 °C
  • Protection class: IP20
  • Flammability acc. to UL94: V-0

12 Months

We Offer 12 Months for this product
