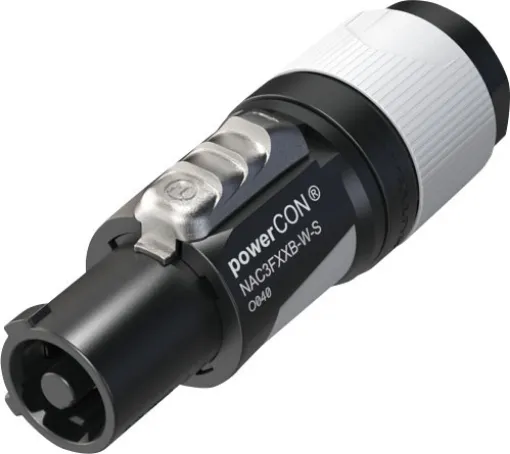

Powercon Female Line 240V Mains Power Out 16A NAC3FXXB-W-S

Specifications

Electrical

• Contact resistance: = 2 mΩ
• Dielectric strength: > 3 kVac (after mating cycles)
• Insulation resistance: > 10 GΩ (initially)
• Number of electrical contacts: 2 + PE
• Rating Europe: EN 60320-1: 16 A 250 V AC, CBC
• Rating USA / Canada: cUL 60320-1: 20 A 127 V AC, CBC

Mechanical

• Cable O.D.: 6 - 12 mm
• Lifetime: typically 5’000 mating cycles
• Wiresize (mm²): 1.5 – 2.5 mm²
• Wiresize (AWG): 16 – 12 AWG, see above cable list
• Locking device: Twist lock
• Termination: Screw type terminals

Material

• Contact plating: Ag
• Contacts: Copper Alloy
• Insert: Polyamide (PA6.6)
• Locking element: Zinc diecast
• Shell: Polyamide (PA6) / TPE
• Strain relief: Polyketone
• Bushing: Polypropylene / TPE

Environmental

• Temperature range: -33 °C to + 80 °C
• Protection class: IP20
• Flammability acc. to UL94: V-0
