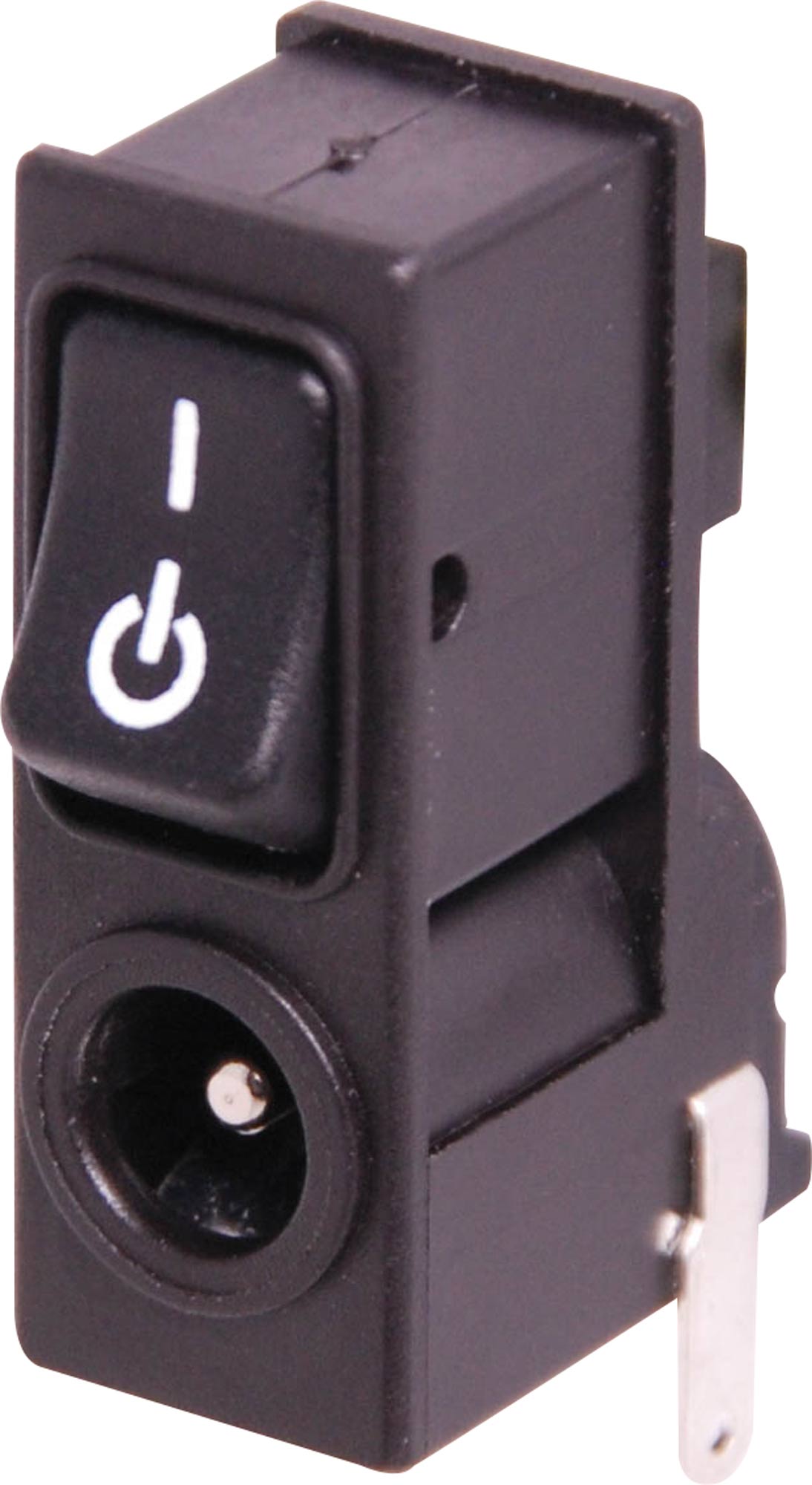

2.1mm DC Power PCB Socket with Switch

Be the first to review this product
Socket 2.1mm PCB 12VDC 3.8A Rated
SKU: P0639A
$6.23
Per ea
Quantity Price
ea $6.23
10+ $5.73
50+ $4.95

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

DC power socket with switch.
2.1mm pitch.
PCB mount type.
12V DC, 3.8A rated.

Specifications:

Electrical rating: DC12V 3.8A

  • Contact resistance: <20mΩ (initial)
  • Insulation resistance: >100MΩ; (500V DC between open contacts)
  • Dielectric strength: >1500V 1 minute
  • Electrical life: 6000cycles
  • Temperature rise at terminal: Max 30ºC
  • Solderability of terminal: 350ºMax. 3 seconds ( no pressure may be placed on terminals when soldering by hand)

12 Months

We Offer 12 Months for this product
