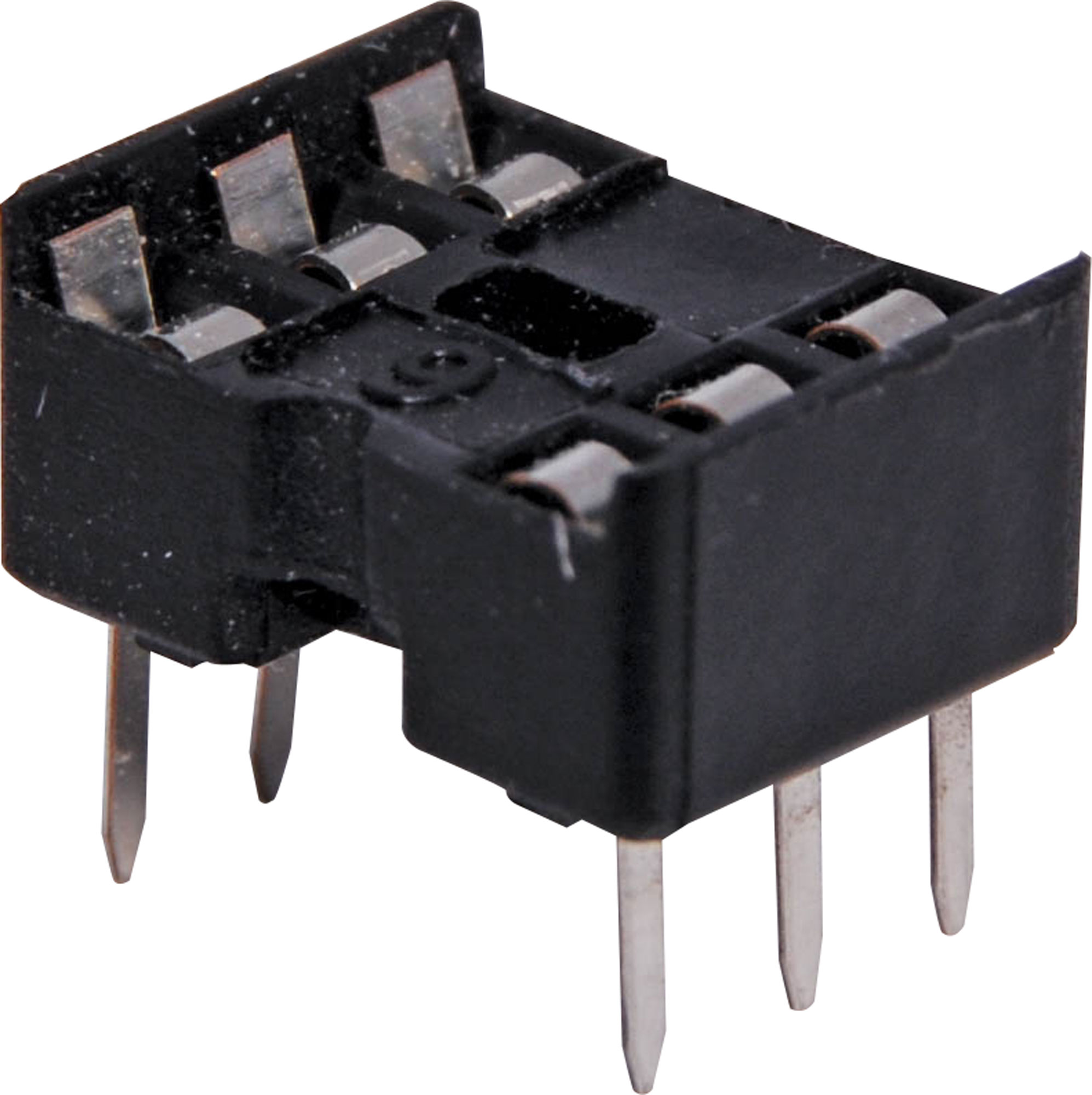

6 Pin (0.3") DIL Tinned IC Socket (80 Pack)

Manufacturer: Oupiin
SKU: P0549
Contact Resistance: 30M Ohms Max @ DC 100mA Insulation Resistance: 1000M Ohms Min @ DC 250V Current Rating: 1 Amp Dielectric Voltage: AC 500V for 1 Minute Operating Temp: -55 deg C to 105 deg C Gold Plated Beryllium Copper Contacts
$0.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $0.36
10+ $0.32
25+ $0.27
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Quality Oupiin brand 8003 series, 6 pin DIL IC socket with dual wipe and tin plated phosphor bronce contacts. Standard 2.54mm (0.1") pin spacing, 7.62 (0.3") pitch.

Specifications

Contact Resistance: 30M Ohms Max @ DC 100mA

  • Insulation Resistance: 1000M Ohms Min @ DC 250V
  • Current Rating: 1 Amp
  • Dielectric Voltage: AC 500V for 1 Minute
  • Operating Temp: -55° to 105° C
  • Gold Plated Beryllium Copper Contacts

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
