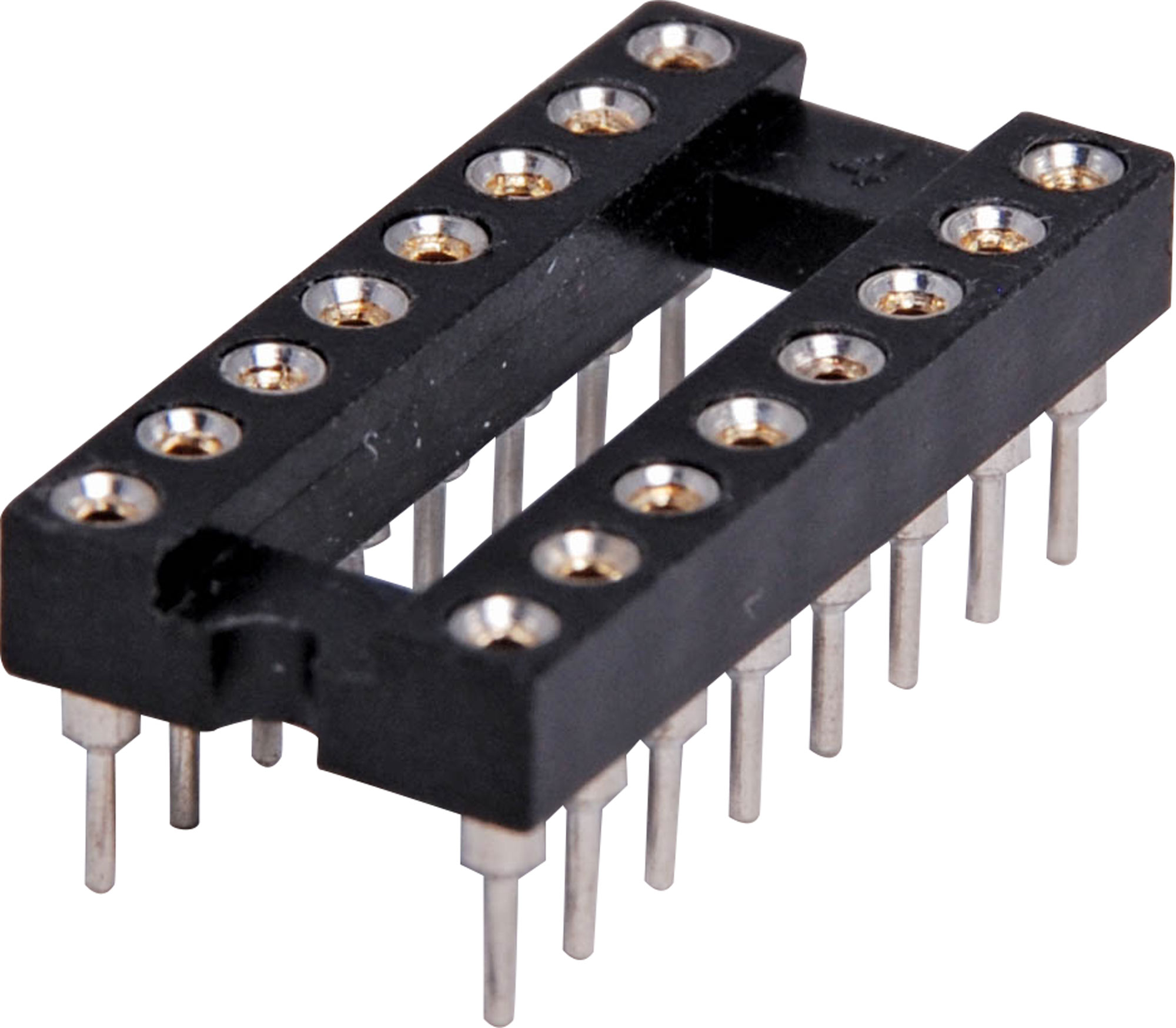

16 Pin (0.3") DIL Machined Pin IC Socket

Manufacturer: Oupiin
Be the first to review this product
Contact Resistance: 30M Ohms Max @ DC 100mA Insulation Resistance: 1000M Ohms Min @ DC 250V Current Rating: 1 Amp Dielectric Voltage: AC 500V for 1 Minute Operating Temp: -55° to 105° C Gold Plated Beryllium Copper Contacts
SKU: P0534
$1.73
Per EACH
QuantityPrice
EACH$1.73
10+$1.50
25+$1.32

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Quality Oupiin brand 8004 series, 16 pin DIL IC socket with machined pins and gold plated beryllium copper contacts. Standard 2.54mm (0.1") pin spacing, 7.62 (0.3") pitch.

Specifications:

Contact Resistance: 30M Ohms Max @ DC 100mA

  • Insulation Resistance: 1000M Ohms Min @ DC 250V
  • Current Rating: 1 Amp
  • Dielectric Voltage: AC 500V for 1 Minute
  • Operating Temp: -55° to 105° C
  • Gold Plated Beryllium Copper Contacts

12 Months

We Offer 12 Months for this product
