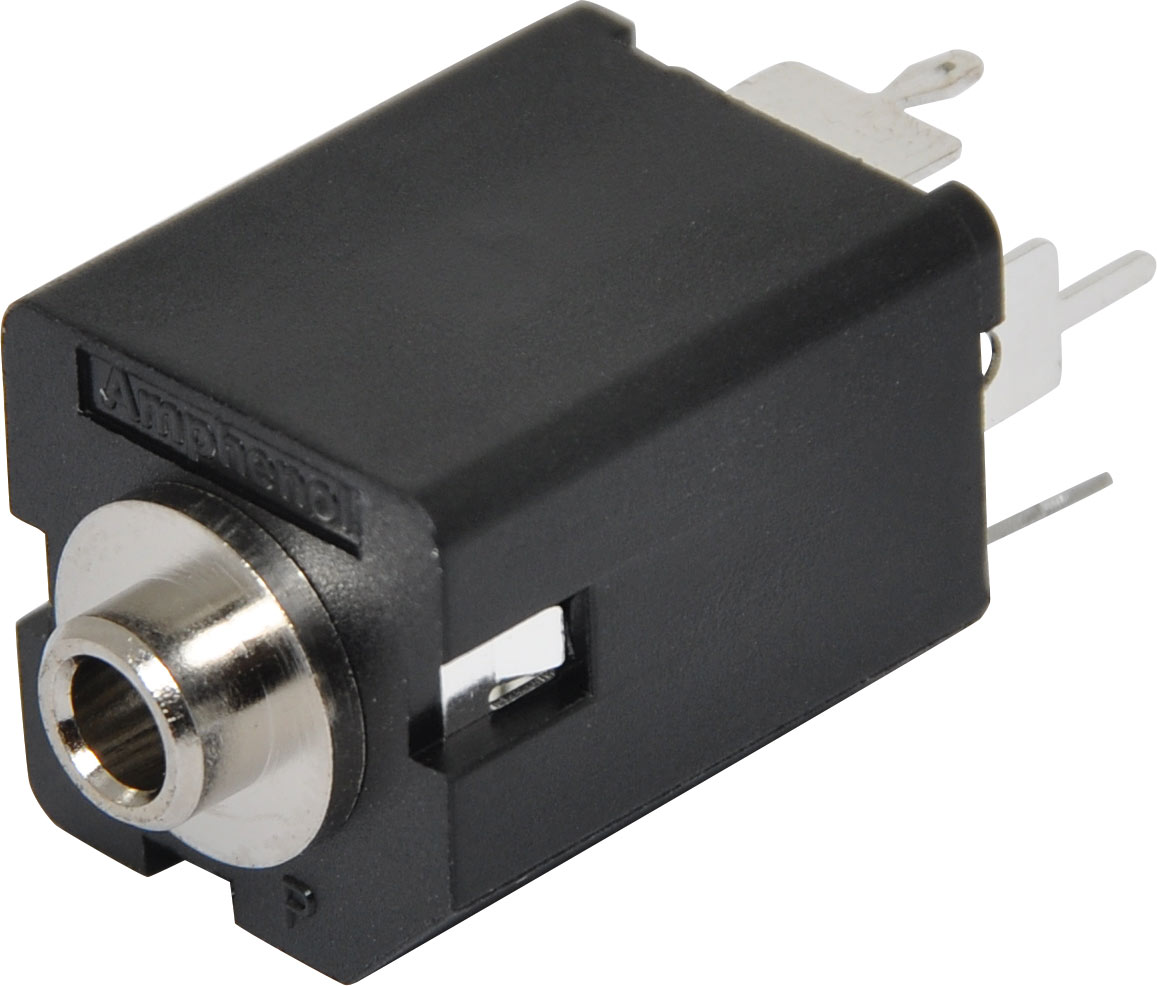

3.5mm Stereo PCB Jack Socket

Manufacturer: Amphenol
Be the first to review this product
3.5mm Stereo PCB Jack Socket
SKU: P0089
$1.77
Per ea
QuantityPrice
ea$1.77
10+$1.59
50+$1.36

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

3.5mm Stereo PCB Jack Socket

Specifications

General Characteristics

  • Number of Contacts: 2 Pole (Mono), 3 Pole Tip Ring Sleeve (Stereo)
  • Termination: Solder, PCB or Combo
  • Flammability rating of insulating plastics: UL94V-0
  • Solder ability, complies with: IEC 68-2-20
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU

Electrical Characteristics

  • Current Carrying Capacity: 10A (Depends on Mating Connector and Cable)
  • Typical Contact Resistance: =10mΩ
  • Insulation resistance (initial) After Damp Heat Test: >2GΩ =103 Meg Ω
  • Rated Voltage: Test Voltage AC RMS: Dielectric Strength: 34V, 500V

Climatic Characteristics

  • Protection Class: IP40
  • Operating Temperature: -25°C to +70°C

Mechanical Characteristics

  • Insertion and Withdrawal Force: =10N - =30N
  • Mating Cycles: Min. of 1000 cycles without any physical damage
  • Weight: Straight (18g), Right Angle (25g)

Materials

  • Connector Shell Material: Nylon PA66 30% Glass Filled
  • Insulators: UL94 V-0 PBT Resin or Modified PPE Resin and fibreglass laminate
  • Metal Nut: Brass
  • Plastic Nut: Nylon PA66 30% Glass Filled
  • Washer: Fiber / Brass / Nylon PA66 30% Glass Filled
  • Contact Plating: Tin - 4µm Min. over 2µm Min.Cu (Copper) Silver - 0.3µm Min. over 2µm Min.Cu (Copper) Nickel - 2µm Min. over 2µm Min.Cu (Copper) Gold Flash - 0.05µm Min. over 2µm Min.Cu (Copper)
  • Contacts: Brass / Sn (Tin) over Cu (Copper)

12 Months

We Offer 12 Months for this product
