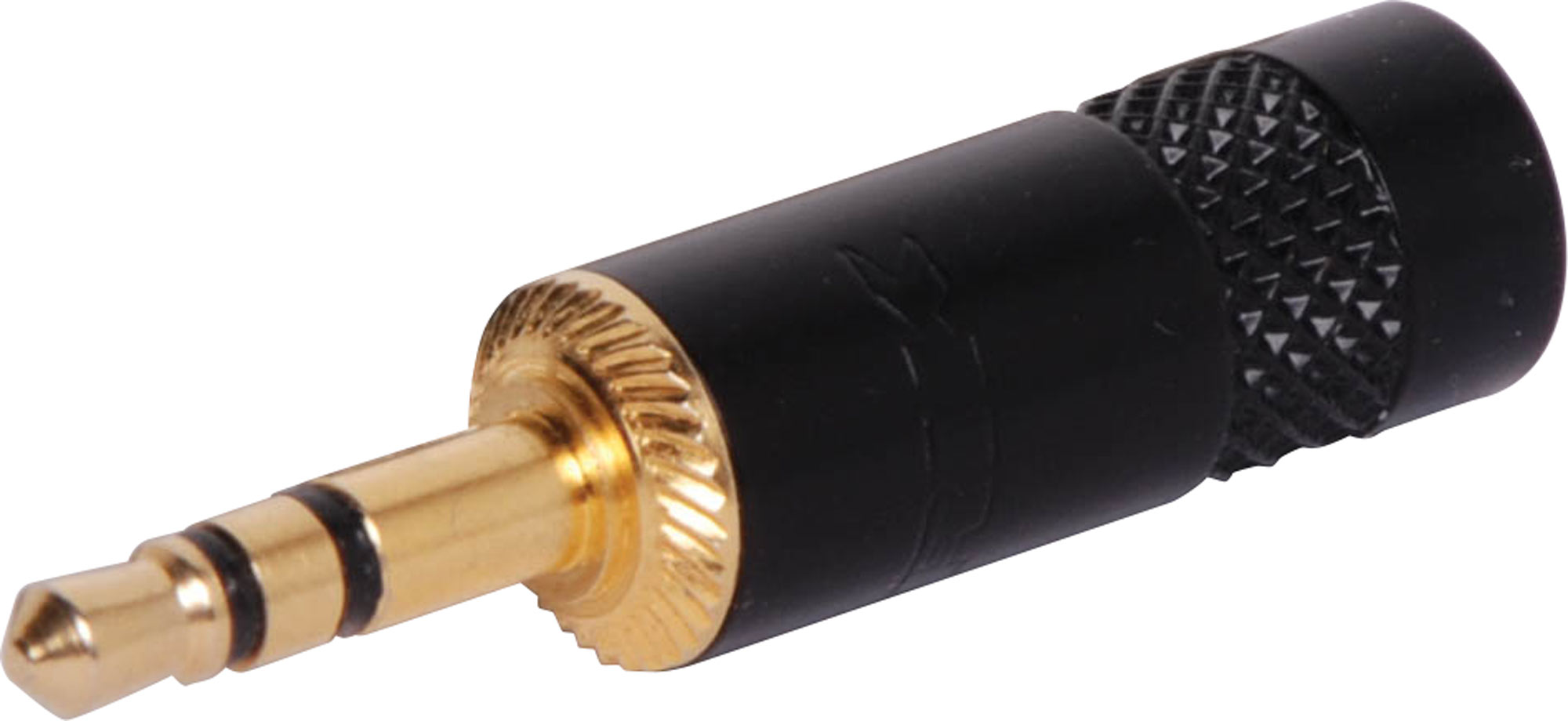

3.5mm Stereo Gold Metal NYS-231LBG Jack Plug

Manufacturer: Neutrik
Be the first to review this product
High quality Neutrik line jack plug. 4mm cable entry rean
SKU: P0034A
$5.68
Per ea
QuantityPrice
ea$5.68
10+$5.00
50+$4.55

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

High quality Neutrik line jack plug.
4mm cable entry. Sold Individually.

Specifications:

Electrical

  • Dielectric strength: 0.5 kVdc
  • Insulation resistance: ≥ 1 GΩ
  • Rated current: depends on mated connector
  • Contact resistance: depends on mated connector

Mechanical

  • Cable: O.D.4 mm
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≥ 10 N
  • Lifetime: 1000 mating cycles

Material

  • Contact plating: Nickel
  • Contacts: Brass (CuZn39Pb3)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Strain relief: SnCe plated, crimp type
  • Insulation: Thermoplastic
  • Environmental
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -25 °C to +70 °C

12 Months

We Offer 12 Months for this product
