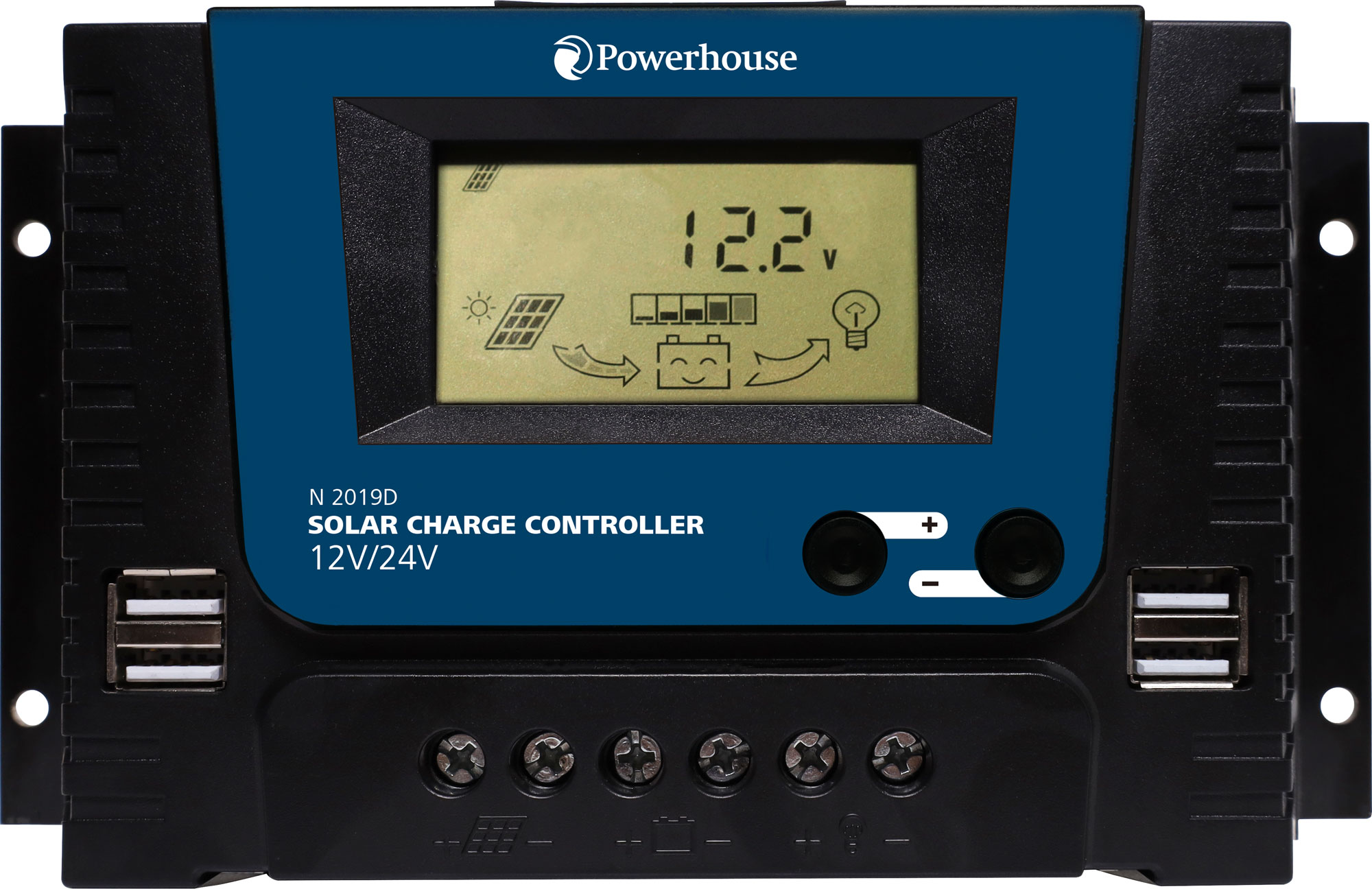

12/24V 30A PWM Solar Charge Controller With USB

Manufacturer: Powerhouse
Be the first to review this product
Suitable for permanent installations of lead acid, gel battery and lithium chemistry (including Li-NiCoMn & LiFePO4) solar panel systems.
SKU: N2019D
$70.45
Per ea
Quantity Price
ea $70.45
2+ $63.41
4+ $56.36

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Suitable for permanent installations of lead acid, gel battery and lithium chemistry (including Li-NiCoMn & LiFePO4) solar panel systems. LCD is provided to indicate working status - solar charge ON, load ON and battery level. Suitable for 12V or 24V systems, the charger automatically detects the connected battery voltage. Ideally suited to vehicles and simple remote power systems such as pumping stations, electric fences, remote lighting, marine applications etc.

Warning: Do not set up using a common earth wiring configuration. Cabling should be as per the user manual with both positive and negative of battery, solar panel, and load each wired straight to the solar regulator with appropriately rated fuses. Failing this will damage the controller, battery or connected load.

Features

  • Suits lead acid type batteries
  • Suits lithium chemistry batteries, including Li-NiCoMn & LiFePO4.
  • Adjustable daytime start, night off mode
  • Auto battery identification
  • Intelligent PWM charging
  • Temperature compensation
  • USB 2A charger (4 ports) Ā
  • Overload, reverse polarity, reverse discharge, over heat, under voltage protections

Specifications

Technical

  • Max charge/load current: 30A
  • No load current: <30mA
  • Max solar input voltage:Ā <100V
  • Terminal wire size: 6AWG

Lead Acid

  • 12V low voltage disconnect: 10.7V
  • 24V low voltage disconnect: 21.4V

Li-NiCoMn

  • 12V low voltage disconnect: 9V
  • 24V low voltage disconnect: 18V

LiFePO4

  • 12V low voltage disconnect: 11.2V
  • 24V low voltage disconnect: 22.4VĀ

12 Months

We Offer 12 Months for this product
