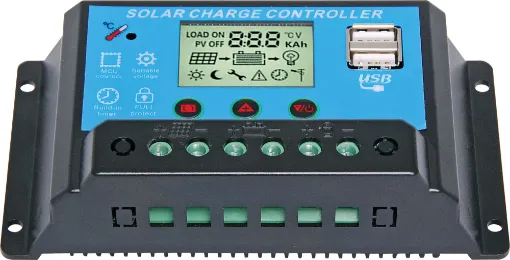

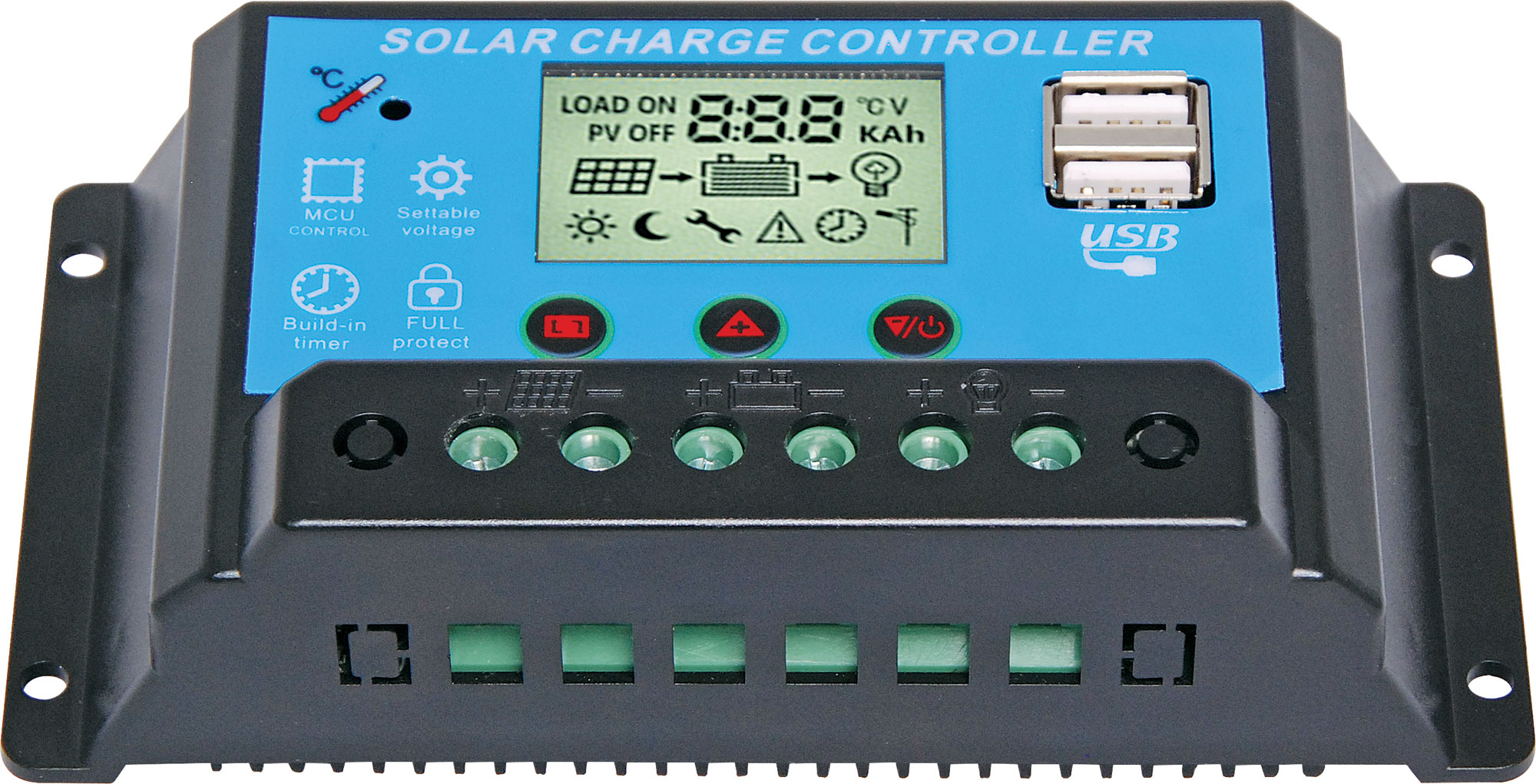

12/24V 20A PWM Solar Charge Controller With USB

SKU: N2018
Featuring intelligent charge control, adjustable parameters, LCD screen and USB charging outputs this solar regulator represents outstanding value for under $100. It is suitable for permanent installations of lead acid and gel battery solar panel systems. The LCD allows for easy selection of charging parameters such as PV switch off voltage, load s
Save $15.41 $36.36 $51.77

All Prices Shown are (ex GST)
Bulk Pricing
ea
$36.36 $51.77
2+
$36.36 $46.59
4+
$36.36 $41.59
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Featuring intelligent charge control, adjustable parameters, LCD screen and USB charging outputs this solar regulator represents outstanding value. It is suitable for permanent installations of lead acid and gel battery solar panel systems. The LCD allows for easy selection of charging parameters such as PV switch off voltage, load switch on voltage, low voltage disconnect and night mode run time. Suitable for 12V or 24V systems, the charger automatically detects the connected battery voltage.

Features:

  • Suits lead acid or gel battery systems
  • USB 2A charging output
  • Automatic fuse protection
  • Adjustable night load mode
  • Adjustable battery charging/discharging voltages
  • Automatic 12/24V voltage selection
  • Reverse polarity protection
  • Short circuit and overload protection
  • Over temperature protection

Specifications:

Max charge/load current 20A

  • 12V low voltage disconnect 10.5V
  • 24V low voltage disconnect 21V
  • No load current: <10mA
  • Max solar input voltage <50V
  • Terminal wire size 10AWG
  • Dimensions (mm) 133 x 71 x 34

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
